9-1534904-4 | AMP

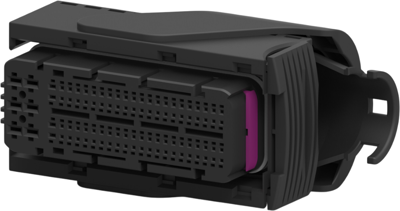

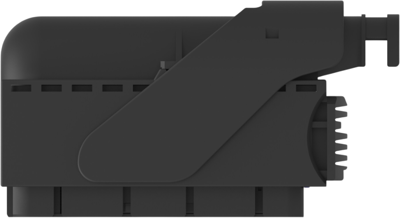

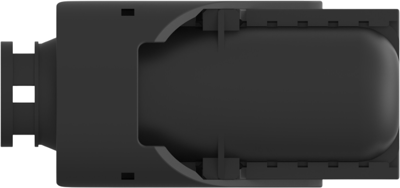

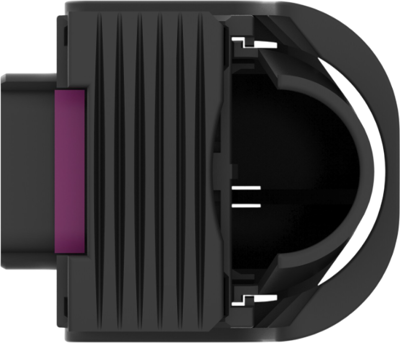

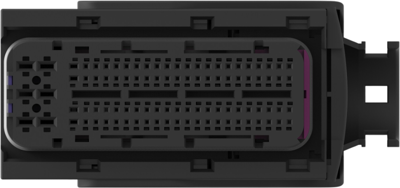

Socket, unequipped, 94 pole, angled, 4 rows, black, 9-1534904-4
Order No.: 36P2577
EAN: 4099889897906
MPN:
9-1534904-4
Unit Price (€ / pc.)
20.9321 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
20.93 € *
Price list
Quantity
Price per unit*
1 pcs.
20.9321 €
10 pcs.
19.6707 €
25 pcs.
17.8976 €
50 pcs.
16.4815 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 9-1534904-4, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 94, Number of rows: 4, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Connector code: A, Mating alignment type: polarized, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes
Technical specifications
| Anzahl der Reihen | 4 | |
| Ausführung | abgewinkelt | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Nennspannung | 12 V | |
| Polzahl | 94-polig | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
