9-966140-2 | AMP

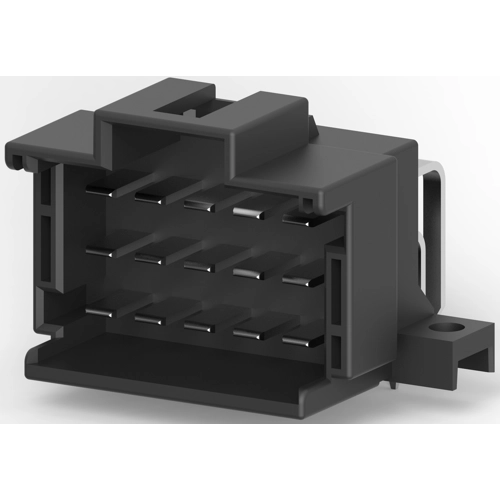

Plug, 15 pole, angled, 3 rows, black, 9-966140-2
Order No.: 36P4245
EAN: 4099889905854
MPN:
9-966140-2
Unit Price (€ / pc.)
7.5684 € *
Available: 0 pcs.
Available in 5 Days: 4,298 pcs.
Leadtime: 22 Weeks **
Total Price:
7.57 € *
Price list
Quantity
Price per unit*
15 pcs.
7.5684 €
70 pcs.
6.2594 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 9-966140-2, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 15, Number of positions: 15, PCB mount orientation: horizontal, Number of rows: 3, Operating voltage: 24 VDC, Primary product color: black, Mating tab width: 2.8 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: solder tail, Centerline (pitch): 3.5 mm, Product length: 41 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 112
Technical specifications
| Connection | solder connection | |
| Number of rows | 3 | |
| Version | angled | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Rated voltage | 24 V | |
| Pin number | 15 pole | |
| Grid | 3.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
