9-967689-1 | AMP

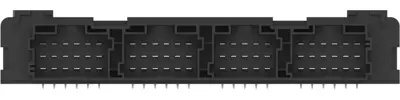

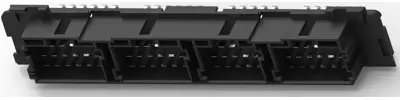

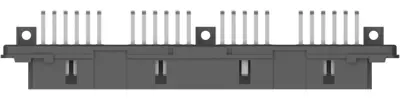

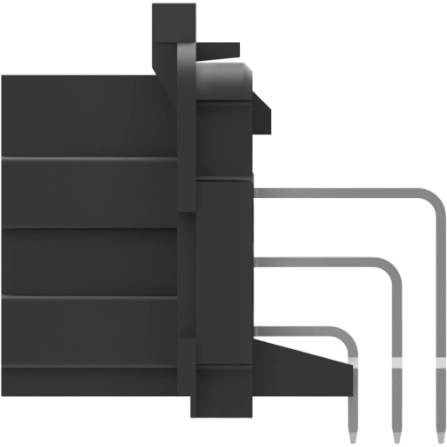

Plug, 69 pole, angled, 3 rows, black, 9-967689-1
Order No.: 36P3248
EAN: 4099889902044
MPN:
9-967689-1
Unit Price (€ / pc.)
94.0933 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
94.09 € *
Price list
Quantity
Price per unit*
1 pcs.
94.0933 €
2 pcs.
92.2131 €
5 pcs.
87.6078 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 9-967689-1, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of sections: 4, Number of positions: 69, PCB mount orientation: horizontal, Number of rows: 3, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Profile Height from PCB: 20 mm, Shielded: no, Circuit application: signal, Packaging type: tray
Technical specifications
| Connection | solder connection | |
| Number of rows | 3 | |
| Version | angled | |
| Colour | black | |
| Contact type | plug | |
| contact surface | silver-plated | |
| Pin number | 69 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
