953302-1 | AMP

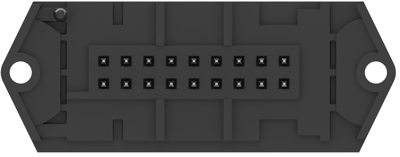

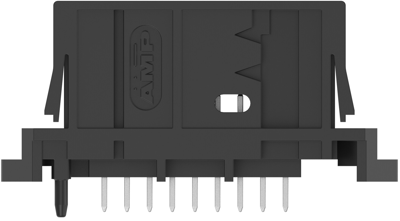

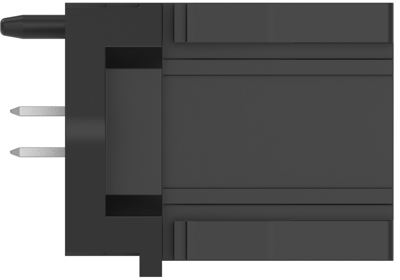

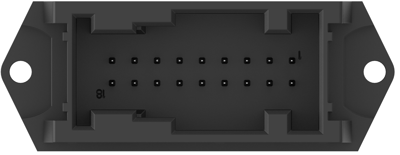

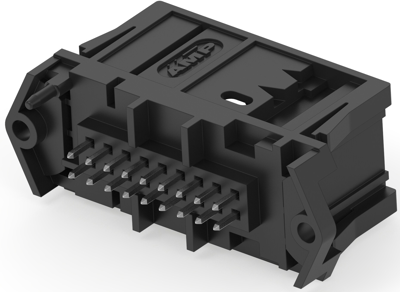

Plug, 18 pole, straight, 2 rows, black, 953302-1
Unit Price (€ / pc.)
3.9270 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
PCB mount header, 953302-1, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 18, Number of positions: 18, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Product length: 44.5 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 462
Technical specifications
| Anschluss | Lötanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | gerade | |
| Farbe | schwarz | |
| Kontaktart | Stecker | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 12 V | |
| Polzahl | 18-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
