967618-1 | AMP

Plug, 18 pole, straight, 2 rows, black, 967618-1

Order No.: 36P1248
EAN: 4099889894349
MPN:
967618-1

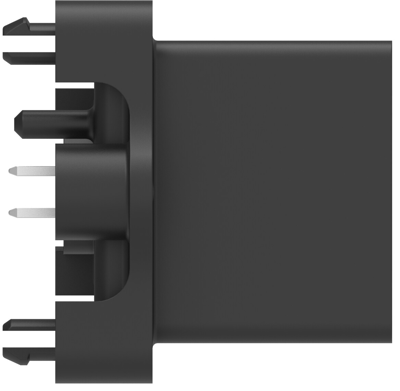

967618-1 AMP Automotive Power Connectors Image 1

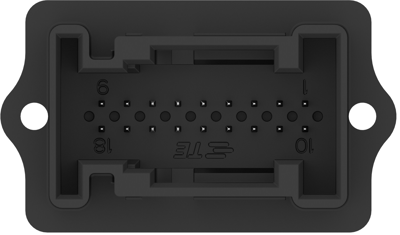

967618-1 AMP Automotive Power Connectors Image 2

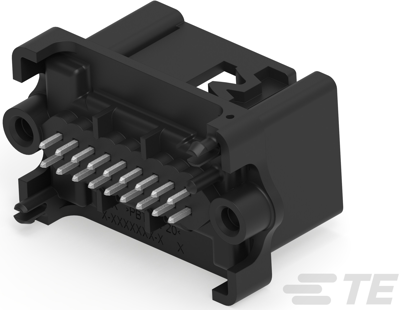

967618-1 AMP Automotive Power Connectors Image 3

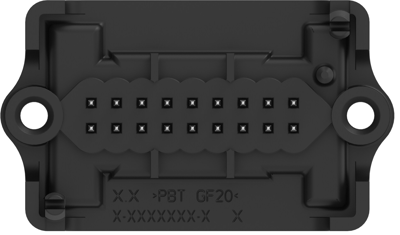

967618-1 AMP Automotive Power Connectors Image 4

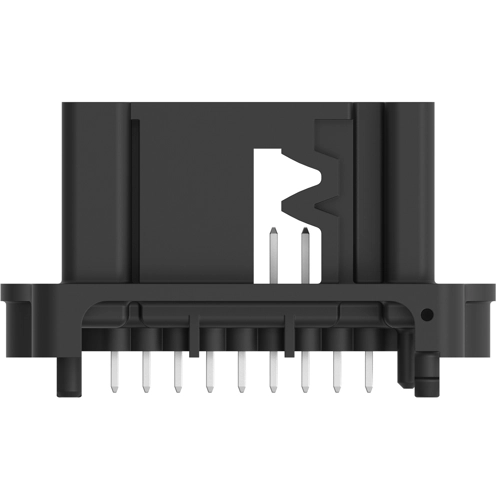

967618-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.0944 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
879.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
420 pcs.
2.0944 €

PCB mount header, 967618-1, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 18, Number of positions: 18, PCB mount orientation: vertical, Number of rows: 2, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Product length: 39.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 420, Interface number: 114-18063-023

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung gerade
Farbe schwarz
Kontaktart Stecker
Kontaktoberfläche verzinnt
Polzahl 18-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85369001
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
