968618-1 | AMP

Socket, unequipped, 2 pole, straight, 1 row, black, 968618-1

Order No.: 36P4361
EAN: 4099889906493
MPN:
968618-1

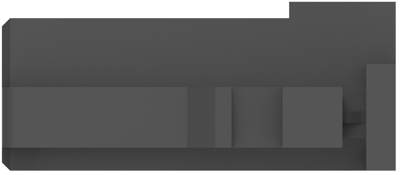

968618-1 AMP Automotive Power Connectors Image 1

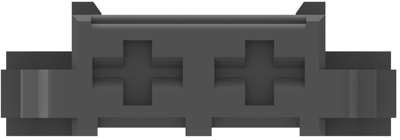

968618-1 AMP Automotive Power Connectors Image 2

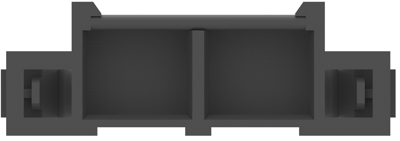

968618-1 AMP Automotive Power Connectors Image 3

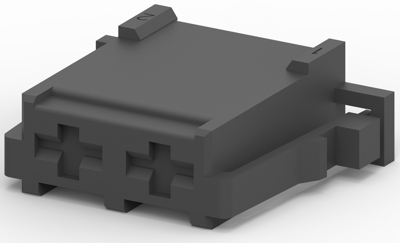

968618-1 AMP Automotive Power Connectors Image 4

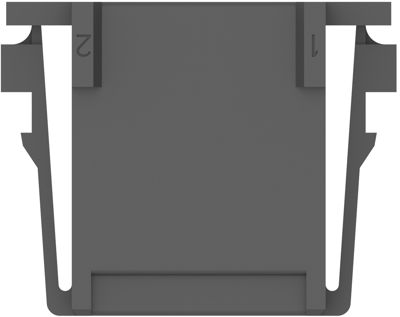

968618-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
0.82 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.8211 €

Socket housing, 968618-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 48 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: PA, Primary product color: black, Mating tab width: 6.3 mm, Strain relief: no, Centerline (pitch): 9.3 mm, Product height: 10.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: power, UL flammability rating: UL 94HB, Packaging method: carton, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung gerade
Bestückung unbestückt
Farbe schwarz
Kontaktart Buchse
Nennspannung 48 V
Polzahl 2-polig
Rastermaß 9.3 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
