969682-1 | AMP

Plug, 6 pole, angled, 1 row, black, 969682-1

Order No.: 36P1261
EAN: 4099889894455
MPN:
969682-1
Series: MQS

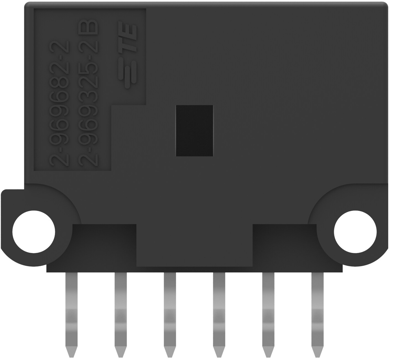

969682-1 AMP Automotive Power Connectors Image 1

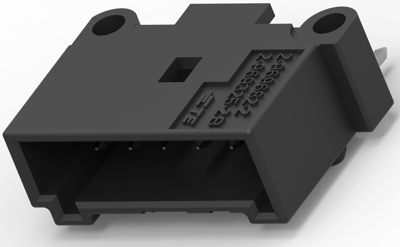

969682-1 AMP Automotive Power Connectors Image 2

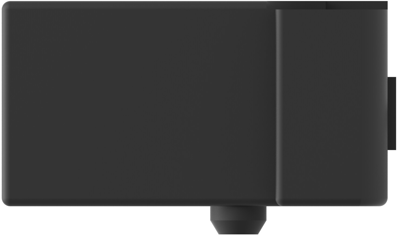

969682-1 AMP Automotive Power Connectors Image 3

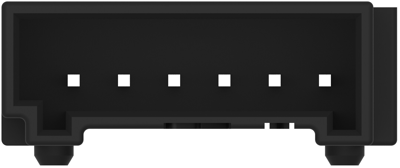

969682-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
5.0218 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
4,519.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
900 pcs.
5.0218 €

PCB mount header, 969682-1, AMP

Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 6, Number of positions: 6, PCB mount orientation: horizontal, Number of rows: 1, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: Surface Mount, PCB mount retention type: mounting hole, Centerline (pitch): 2.54 mm, Product length: 20 mm, Shielded: no, Circuit application: signal, Packaging quantity: 300, Interface number: 114-18063-19

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 1
Ausführung abgewinkelt
Farbe schwarz
Kontaktart Stecker
Kontaktoberfläche verzinnt
Polzahl 6-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland CH
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
