2-34067-1 | AMP

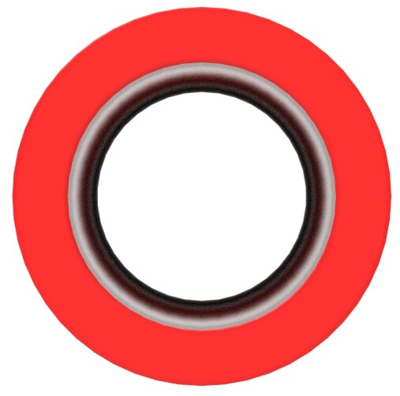

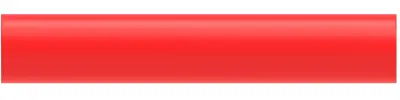

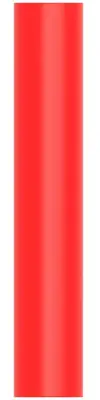

Butt connectorwith insulation, 0.3-1.42 mm², AWG 22 to 16, red, 27.05 mm, 2-34067-1
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Leadtime: On Request **
Splice, 2-34067-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Splice Color: Red, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-16 AWG, Wire Size: 0.3-1.42 mm², Splice Wire Insulation Diameter (Max): 3.05 mm, Wire Size: 509-3.260 CMA, Splice Overall Length: 27.05 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 2500, Splice Packaging Method: Tape Mounted, Comment: Marking: Commercial 22-16- Military 22-18 in accordance with MIL-T-7928.
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | red | |
| Isolated | Yes | |
| Length | 27.05 mm | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
