320788 | AMP

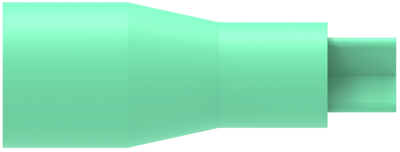

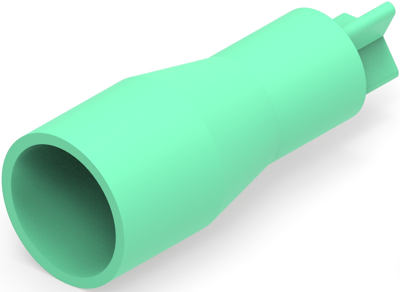

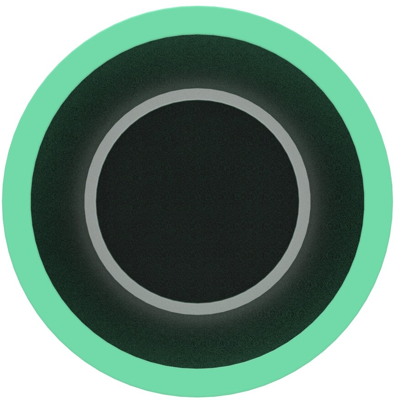

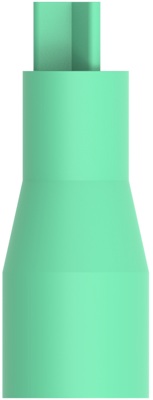

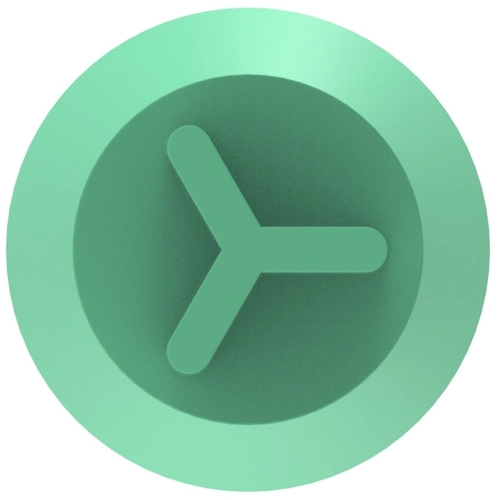

End connectorwith insulation, 0.8-8.0 mm², AWG 18 to 8, green, 40.01 mm, 320788
Order No.: 38P3251
EAN: 4099889609752
MPN:
320788
Unit Price (€ / pc.)
1.9278 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.7493 €
50 pcs.
1.5708 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 320788, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Splice Accessory Type: Splice, Plating Material: Unplated, Splice Material: Copper, Splice Color: Green, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 18-8 AWG, Wire Size: 0.8-8 mm², Splice Wire Insulation Diameter (Max): 12.7 mm, Wire Size: 10320-20820 CMA, Wire Size: 10.32-20.82 kcmil, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Marking: ECV, Government Qualified Splice: No, Packaging Quantity: 250, Splice Packaging Method: Loose Piece, Comment: ECV-600V Max. Building Wiring. 1000V Max. Fixtures & Signs, 105°C UL, 90°C CSA.
Technical specifications
| Version | end connector | |
| AWG cross-section | AWG 18 to 8 | |
| Colour | green | |
| Isolated | Yes | |
| Length | 40.01 mm | |
| Cable cross-section | 0.8-8.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
