322823 | AMP

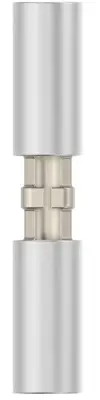

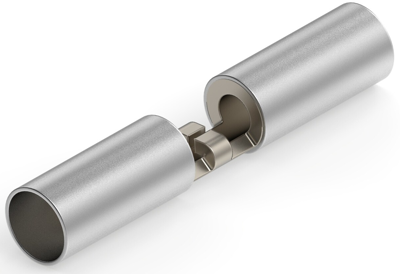

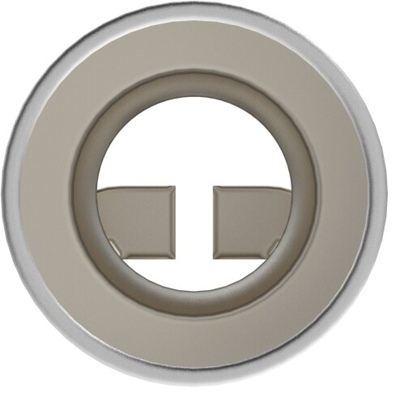

Butt connector, uninsulated, 0.26-1.65 mm², AWG 22 to 16, silver, 22.58 mm, 322823
Order No.: 39P2190
EAN: 4099889609950
MPN:
322823
Unit Price (€ / pc.)
4.046 € *
Available: 0 pcs.
Leadtime: On Request **
Splice, 322823, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Barrel Type: Closed Barrel, Plating Material: Nickel, Splice Features: Strap, Splice Material: Copper, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-16 AWG, Wire Size: 0.26-1.65 mm², Splice Wire Insulation Diameter (Max): 2.66-3.55 mm, Wire Size: 0.51-3.26 kcmil, Wire Size: 509-3.260 CMA, High Temperature Rating: 343 °C, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Military Category: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | silver | |
| Isolated | No | |
| Length | 22.58 mm | |
| Cable cross-section | 0.26-1.65 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
