324625 | AMP

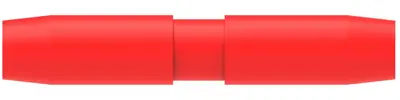

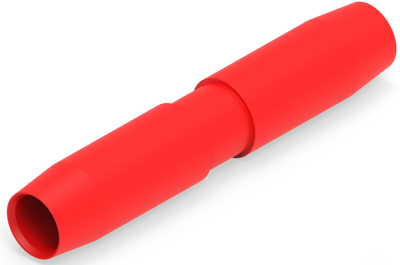

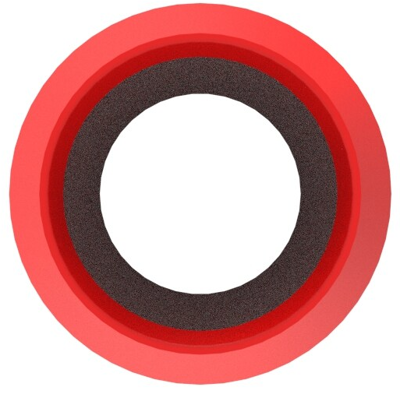

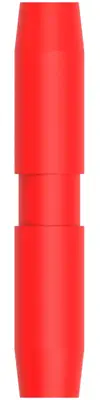

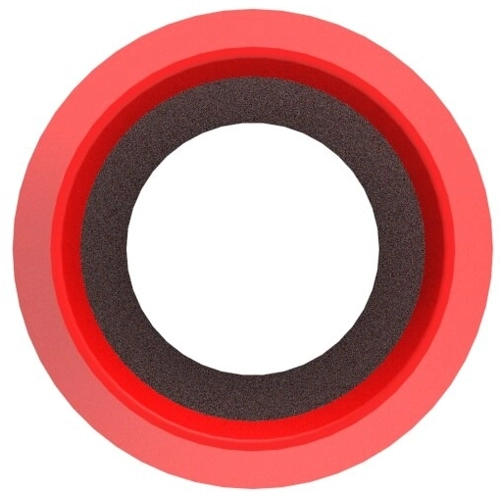

Butt connectorwith insulation, 8.0 mm², AWG 8, red, 52.48 mm, 324625
Order No.: 39P3193
EAN: 4099889610123
MPN:
324625
Unit Price (€ / pc.)
45.6127 € *
Available: 0 pcs.
Leadtime: On Request **
Splice, 324625, AMP
Discrete Wire Type: Stranded, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: No, Splice Configuration: Single to Single, Operating Voltage: 600 V, Insulation Support Sleeve Material: Nylon, Splice Material: Copper, Splice Color: Red, Terminal & Splice Type: Splice, Wire Insulation Support: With, Outside Diameter: 9.525 mm, Wire Size: 8 AWG, Wire Size: 8 mm², Splice Wire Insulation Diameter (Max): 6.48 mm, Barrel Inside Diameter: 6.6 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Loose Piece, Military Category: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 8 | |
| Colour | red | |
| Isolated | Yes | |
| Length | 52.48 mm | |
| Cable cross-section | 8.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
