324893 | AMP

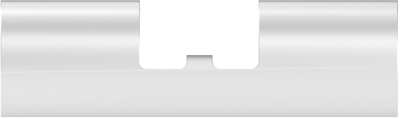

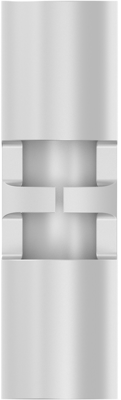

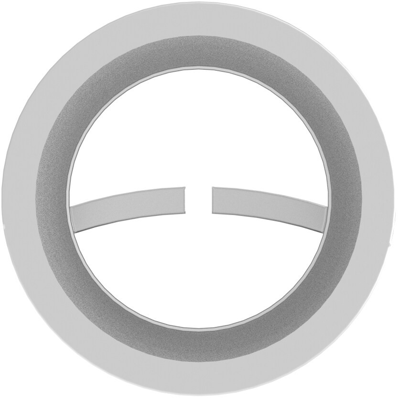

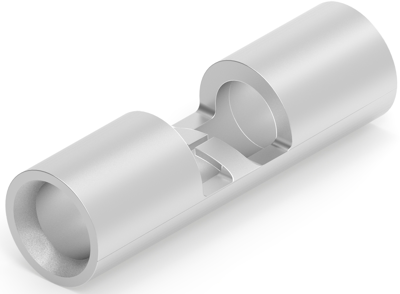

Butt connector, uninsulated, 3.0-6.0 mm², AWG 12 to 10, silver, 19.43 mm, 324893
Order No.: 39P8536
EAN: 4099889610970
MPN:
324893
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 5 Days: 2,416 pcs.
Leadtime: 27 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
150 pcs.
0.7021 €
800 pcs.
0.5593 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 324893, AMP
Discrete Wire Type: Solid, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Number of Serrations: 16, Plating Material: Tin, Splice Features: Strap, Splice Material: Copper, Contact Plating Thickness: 2.54 µm, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 5.74 mm, Wire Size: 12-10 AWG, Wire Size: 3-6 mm², Barrel Inside Diameter: 3.28 mm, Wire Size: 5180-13100 CMA, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 500, Splice Packaging Method: Loose Piece, Military Category: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | silver | |
| Isolated | No | |
| Length | 19.43 mm | |
| Cable cross-section | 3.0-6.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
