42779-1 | AMP

Crimp splice, uninsulated, 1.54-3.46 mm², AWG 15 to 12, yellow, 5.72 mm, 42779-1

Order No.: 34P6444
EAN: 4099889609219
MPN:
42779-1
Series: AMPLIVAR

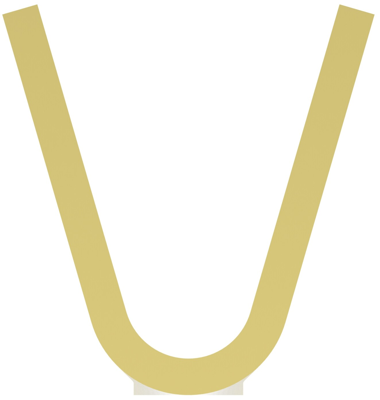

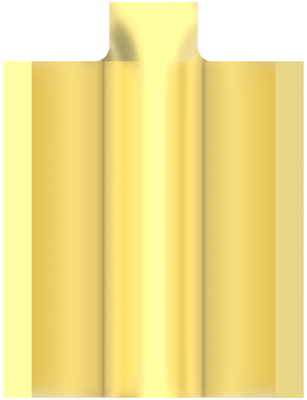

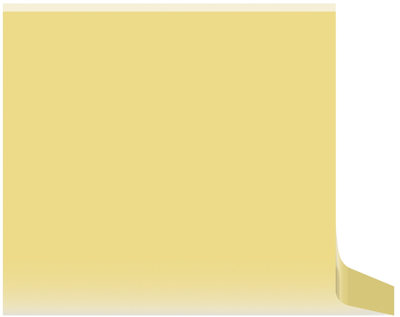

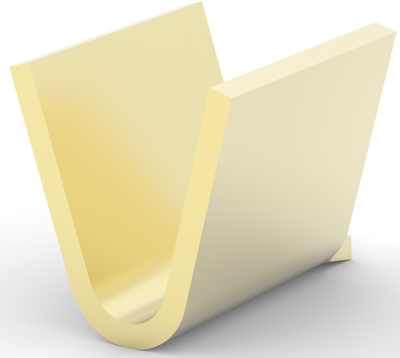

42779-1 AMP Butt splices Image 1
42779-1 AMP Butt splices Image 2
42779-1 AMP Butt splices Image 3
42779-1 AMP Butt splices Image 4
42779-1 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
0.0655 € *
Available: 0 pcs.
Available in 5 Days: 40,000 pcs.
Leadtime: 29 Weeks **
Total Price:
1,309.00 € *
Price list
Quantity
Price per unit*
20000 pcs.
0.0655 €
40000 pcs.
0.0619 €
*incl. VAT plus shipping costs
**Subject to prior sale

Splice, 42779-1, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Thru Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: End Feed, Splice Capacity: 3, Number of Serrations: 5, Operating Voltage: 250 V, Plating Material: Unplated, Splice Material: Brass, Contact Plating Material: Unplated, Terminal & Splice Type: Splice, Crimp Width: 2.79 mm, Wire Insulation Support: Without, Wire Size: 15.5-12 AWG, Wire Size: 1.54-3.46 mm², Wire Size: 3000-7000 CMA, Splice Material Thickness: 0.51 mm, Splice Overall Length: 5.72 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 20000, Splice Packaging Method: Strip

Technical specifications
Ausführung Crimpverbinder
AWG-Leiterquerschnitt AWG 15 bis 12
Farbe gelb
Isoliert No
Länge 5.72 mm
Leiterquerschnitt 1,54-3,46 mm²
Material Messing
Schrumpfschlauch No
Logistics
Ursprungsland US
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
