53234-1 | AMP

End connectorwith insulation, 0.3-3.0 mm², AWG 22 to 12, transparent, 38.1 mm, 53234-1

Order No.: 38P3250
EAN: 4099889609745
MPN:
53234-1
AMP

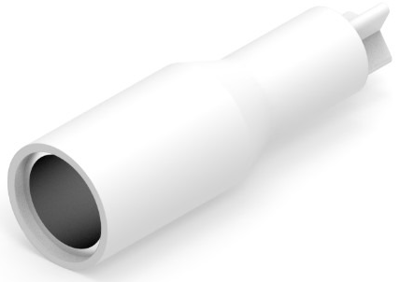

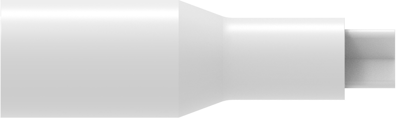

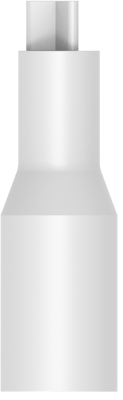

53234-1 AMP Butt splices Image 1
53234-1 AMP Butt splices Image 2
53234-1 AMP Butt splices Image 3
53234-1 AMP Butt splices Image 4
53234-1 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
0.2844 € *
Available: 0 pcs.
Available in 5 Days: 3,750 pcs.
Leadtime: 14 Weeks **
Total Price:
0.28 € *
Price list
Quantity
Price per unit*
500 pcs.
0.2844 €
1750 pcs.
0.2594 €
*incl. VAT plus shipping costs
**Subject to prior sale

Splice, 53234-1, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Splice Accessory Type: Splice, Plating Material: Unplated, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-12 AWG, Wire Size: 0.3-3 mm², Splice Wire Insulation Diameter (Max): 9.14 mm, Wire Size: 3248-11400 CMA, Wire Size: 3.248-11.4 kcmil, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Marking: ECV, Government Qualified Splice: No, Packaging Quantity: 250, Splice Packaging Method: Loose Piece, Comment: ECV-600V Max. Building Wiring. 1000V Max. Fixtures & Signs, 105°C UL, 90°C CSA.For stranded wire only.

Technical specifications
Version end connector
AWG cross-section AWG 22 to 12
Colour transparent
Isolated Yes
Length 38.1 mm
Cable cross-section 0.3-3.0 mm²
Material copper
shrinkable tubing No
Logistics
Country of origin TW
Customs tariff number 85369040
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
