55825-1 | AMP

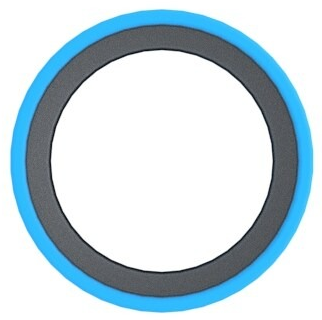

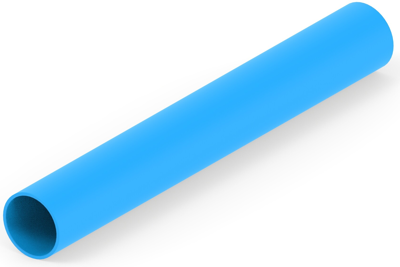

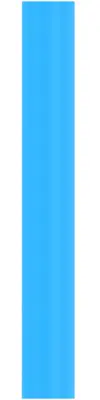

Butt connectorwith insulation, 1.25-2.0 mm², AWG 16 to 14, blue, 40.79 mm, 55825-1
Order No.: 39P3119
EAN: 4099889610086
MPN:
55825-1
Unit Price (€ / pc.)
1.8921 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 23 Weeks **
Total Price:
1.89 € *
Price list
Quantity
Price per unit*
50 pcs.
1.8921 €
300 pcs.
1.6541 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 55825-1, AMP
Splice Product Type: Splice, Sealable: Yes, Splice Type: Butt Splice, Serrated: No, Splice Barrel Type: Closed Barrel, Plating Material: Tin, Unplated, Splice Material: Copper, Splice Color: Blue, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 16-14 AWG, Wire Size: 1.25-2 mm², Splice Wire Insulation Diameter (Max): 4.83 mm, Barrel Inside Diameter: 4.83 mm, Wire Size: 2050-5180 CMA, Operating Temperature Range: -55-125 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Military Category: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | blue | |
| Isolated | Yes | |
| Length | 40.79 mm | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
