62000-1 | AMP

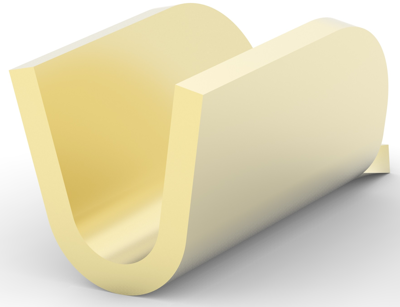

Crimp splice, uninsulated, 0.3-1.5 mm², AWG 22 to 15, yellow, 5.72 mm, 62000-1
Unit Price (€ / pc.)
0.0369 € *
Available: 0 pcs.
Available in 5 Days: 120,000 pcs.
Leadtime: 31 Weeks **
Total Price:
1,106.70 € *
Price list
Quantity
Price per unit*
30000 pcs.
0.0369 €
60000 pcs.
0.0345 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 62000-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: End Feed, Splice Capacity: 3, Number of Serrations: 7, Operating Voltage: 250 V, Plating Material: Unplated, Splice Material: Brass, Contact Plating Material: Unplated, Terminal & Splice Type: Splice, Crimp Width: 2.79 mm, Wire Insulation Support: Without, Wire Size: 22-15 AWG, Wire Size: 0.3-1.5 mm², Wire Size: 600-3000 CMA, Splice Material Thickness: 0.51 mm, Splice Overall Length: 5.72 mm, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 30000, Splice Packaging Method: Strip
Technical specifications
| Version | Crimpverbinder | |
| Cable cross-section | 0,3-1,5 mm² | |
| AWG cross-section | AWG 22 bis 15 | |
| Isolated | No | |
| Colour | gelb | |
| Material | Messing | |
| shrinkable tubing | No | |
| Length | 5.72 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
