62040-1 | AMP

Crimp splice, uninsulated, 0.8-2.5 mm², AWG 18.5 to 13.5, black, 5.72 mm, 62040-1

Order No.: 34P6434
EAN: 4099889609158
MPN:
62040-1
Series: AMPLIVAR

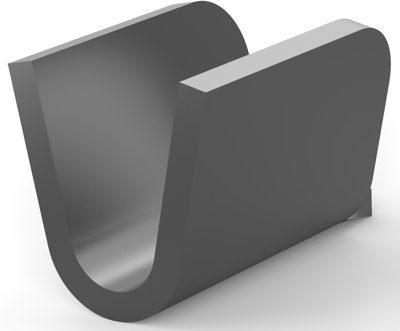

62040-1 AMP Butt splices Image 1

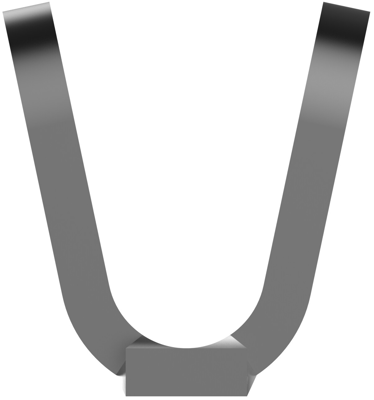

62040-1 AMP Butt splices Image 2

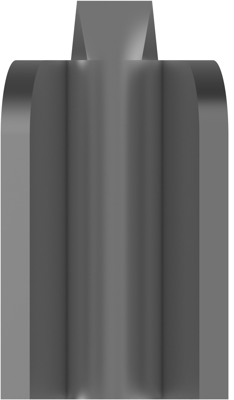

62040-1 AMP Butt splices Image 3

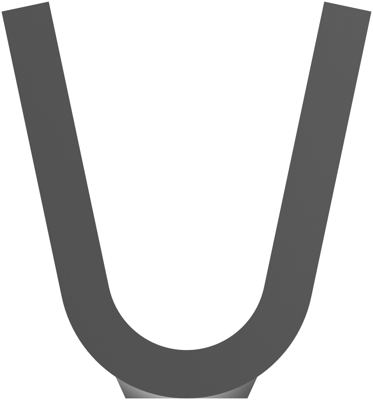

62040-1 AMP Butt splices Image 4

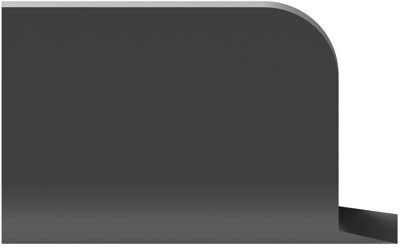

62040-1 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
0.0345 € *
Available: 0 pcs.
Available in 5 Days: 210,000 pcs.
Leadtime: 31 Weeks **
Total Price:
1,035.30 € *
Price list
Quantity
Price per unit*
30000 pcs.
0.0345 €
60000 pcs.
0.0333 €
*incl. VAT plus shipping costs
**Subject to prior sale

Splice, 62040-1, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: End Feed, Splice Capacity: 3, Number of Serrations: 7, Operating Voltage: 250 V, Plating Material: Tin, Splice Material: Brass, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Crimp Width: 2.79 mm, Wire Insulation Support: Without, Wire Size: 18.5-13.5 AWG, Wire Size: 0.8-2.5 mm², Wire Size: 1500-5000 CMA, Splice Material Thickness: 0.51 mm, Splice Overall Length: 5.72 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 30000, Splice Packaging Method: Strip

Technical specifications
Ausführung Crimpverbinder
AWG-Leiterquerschnitt AWG 18,5 bis 13,5
Farbe schwarz
Isoliert No
Länge 5.72 mm
Leiterquerschnitt 0,8-2,5 mm²
Material Messing
Schrumpfschlauch No
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
