62201-2 | AMP

Crimp splice, uninsulated, 1.54-3.46 mm², AWG 15.5 to 12, gray, 5.72 mm, 62201-2

Order No.: 34P6435
EAN: 4099889609165
MPN:
62201-2
AMP

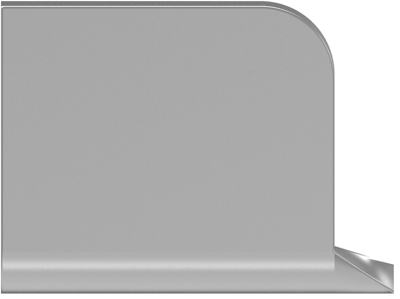

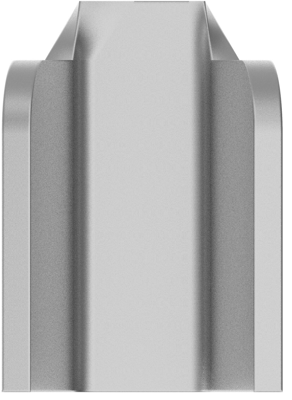

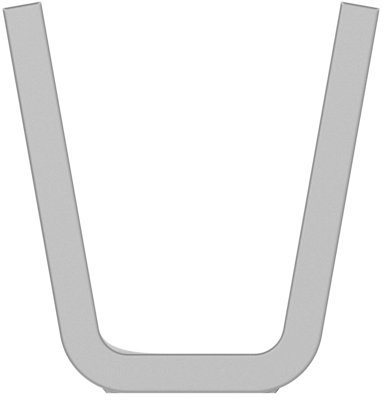

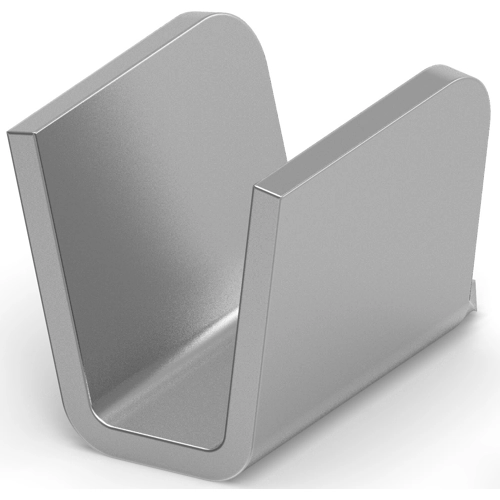

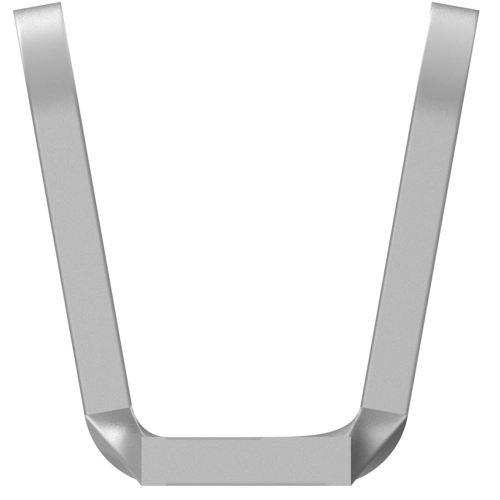

62201-2 AMP Butt splices Image 1
62201-2 AMP Butt splices Image 2
62201-2 AMP Butt splices Image 3
62201-2 AMP Butt splices Image 4
62201-2 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
0.0714 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20000 pcs.
0.0714 €

Splice, 62201-2, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: End Feed, Splice Capacity: 3, Number of Serrations: 7, Operating Voltage: 250 V, Plating Material: Tin, Splice Material: Brass, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Crimp Width: 3.56 mm, Wire Insulation Support: Without, Wire Size: 15.5-12 AWG, Wire Size: 1.54-3.46 mm², Wire Size: 3000-7000 CMA, Splice Material Thickness: 0.51 mm, Splice Overall Length: 5.72 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 20000, Splice Packaging Method: Strip

Technical specifications
Version crimp splice
AWG cross-section AWG 15.5 to 12
Colour gray
Isolated No
Length 5.72 mm
Cable cross-section 1.54-3.46 mm²
Material brass
shrinkable tubing No
Logistics
Country of origin AT
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
