62341-1 | AMP

Crimp splice, uninsulated, 0.2-0.75 mm², AWG 24 to 18.5, black, 4.95 mm, 62341-1

Order No.: 34P6415
EAN: 4099889609073
MPN:
62341-1
Series: AMPLIVAR
AMP

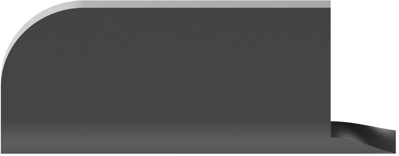

62341-1 AMP Butt splices Image 1

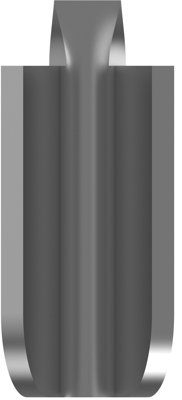

62341-1 AMP Butt splices Image 2

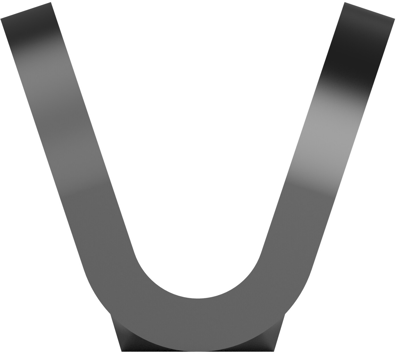

62341-1 AMP Butt splices Image 3

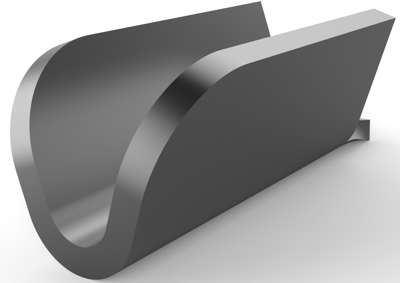

62341-1 AMP Butt splices Image 4

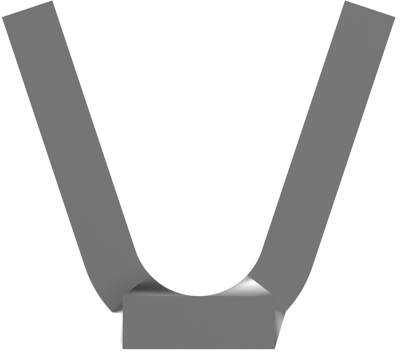

62341-1 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
0.0809 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
24000 pcs.
0.0809 €

Splice, 62341-1, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: Side Feed, Splice Capacity: 2, Number of Serrations: 3, Operating Voltage: 250 V, Plating Material: Tin, Splice Material: Brass, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Crimp Width: 2.03 mm, Wire Insulation Support: Without, Wire Size: 24-18.5 AWG, Wire Size: 0.2-0.75 mm², Wire Size: 480-1500 CMA, Splice Material Thickness: 0.36 mm, Splice Overall Length: 4.95 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 12000, Splice Packaging Method: Strip

Technical specifications
Version crimp splice
AWG cross-section AWG 24 to 18.5
Colour black
Isolated No
Length 4.95 mm
Cable cross-section 0.2-0.75 mm²
Material brass
shrinkable tubing No
Logistics
Country of origin MX
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
