7-1377172-3 | AMP

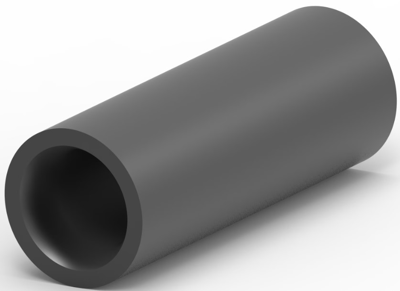

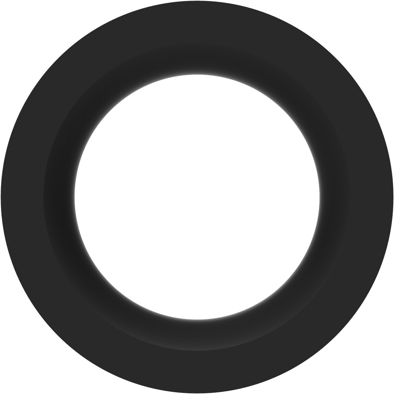

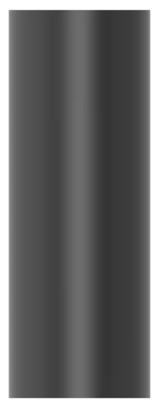

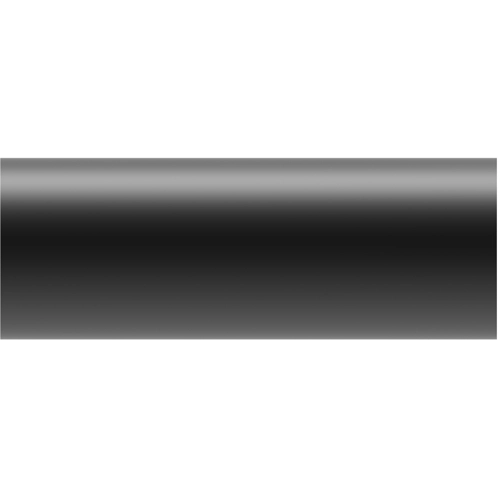

Butt connector, uninsulated, 3.31-5.26 mm², AWG 12 to 10, black, 14.35 mm, 7-1377172-3
Order No.: 39P8543
EAN: 4099889611021
MPN:
7-1377172-3
Unit Price (€ / pc.)
1.0115 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 46 Weeks **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
100 pcs.
1.0115 €
600 pcs.
0.8568 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 7-1377172-3, AMP
Barrel Style: Standard, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Strip Orientation: End Feed, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Terminal & Splice Type: Splice, Termination Method: Crimp, Wire Insulation Support: Without, Outside Diameter: Wire Size: 12-10 AWG, Wire Size: 3.31-5.26 mm², Barrel Inside Diameter: 2.16 mm, Wire Size: 5180-13100 CMA, High Temperature Rating: 170 °C, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Small Pack, Military Category: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | black | |
| Isolated | No | |
| Length | 14.35 mm | |
| Cable cross-section | 3.31-5.26 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
