735398 | AMP

Branch terminalwith insulation, 1.0-2.5 mm², AWG 17 to 13, blue, 34.9 mm, 735398

Order No.: 09H2583
EAN: 4099889604399
MPN:
735398
0-0735398-0
Series: ELECTRO-TAP

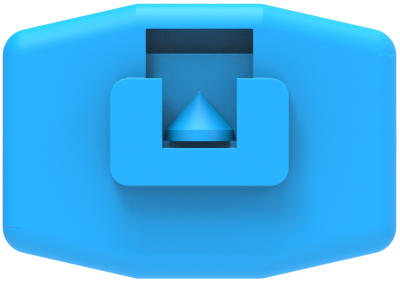

735398 AMP Butt splices Image 1

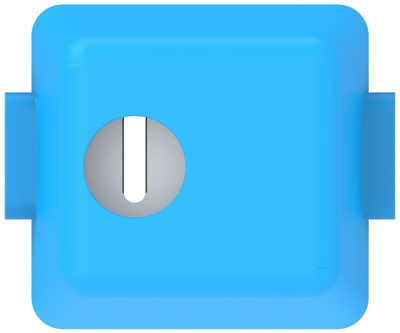

735398 AMP Butt splices Image 2

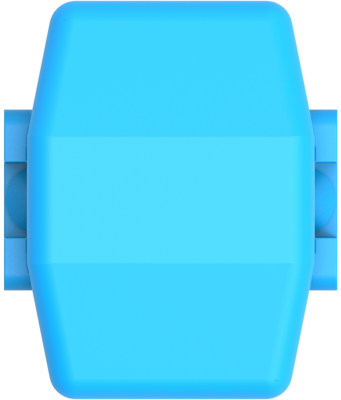

735398 AMP Butt splices Image 3

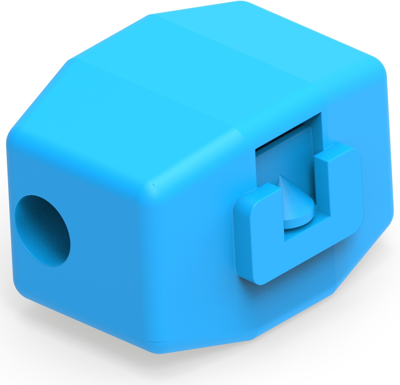

735398 AMP Butt splices Image 4
735398 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Available: 0 pcs.
Next delivery: 2,100 pcs. on 2025-08-01
Available in 5 Days: 1,181 pcs.
Leadtime: 4 Weeks **
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
10 pcs.
1.0710 €
50 pcs.
0.9758 €
100 pcs.
0.8806 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable connectors and distributors, insulation displacement technology, type AMP/AMP Electro Tap 735.

For stranded and solid wires, can be installed without stripping the cable ends and without special tools. You only need a standard pair of combination pliers to terminate the wires by pressing the two insulating elements together. This perforates the wire insulation and produces a reliable contact to the conductor. The shell is made of color-coded nylon and the contacts of tinned brass. The load capacity depends on the conductor cross-section used. Max; Insulation diameter type 398/411: 4.0/5.0 mm. Dimensions A/B in mm: type 398 = 12.5/7.0 mm, type 411 = 16.2/11.8 mm.

Technical attributes (type designation, conductor cross-section, color code): 398, 1.0 to 2.5 mm², blue

Technical specifications
Version Abzweigklemme
Cable cross-section 1,0-2,5 mm²
AWG cross-section AWG 17 bis 13
Isolated Yes
Colour blau
Material Messing
shrinkable tubing No
Length 34.9 mm
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
