8-34130-1 | AMP

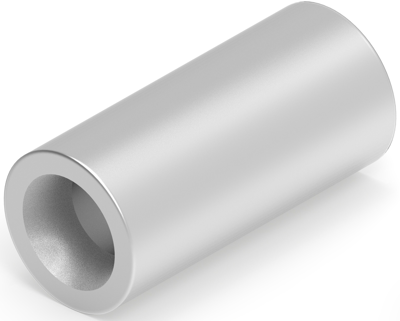

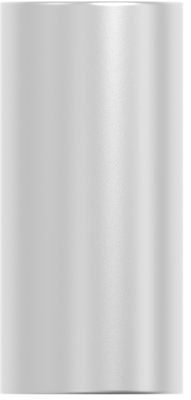

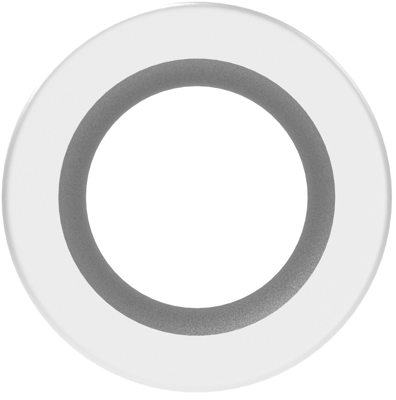

Butt connector, uninsulated, 0.3-1.42 mm², AWG 22 to 16, silver, 7.65 mm, 8-34130-1
Order No.: 39P8510
EAN: 4099889610840
MPN:
8-34130-1
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Leadtime: On Request **
Splice, 8-34130-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Parallel Splice, Serrated: Yes, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 3.58 mm, Wire Size: 22-16 AWG, Wire Size: 0.3-1.42 mm², Barrel Inside Diameter: 1.55 mm, Wire Size: 509-3.260 CMA, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Loose Piece, Military Category: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | silver | |
| Isolated | No | |
| Length | 7.65 mm | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
