1-1377172-8 | AMP

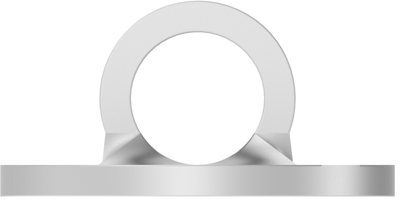

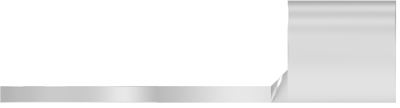

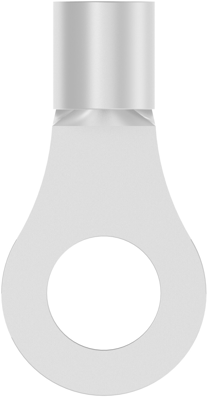

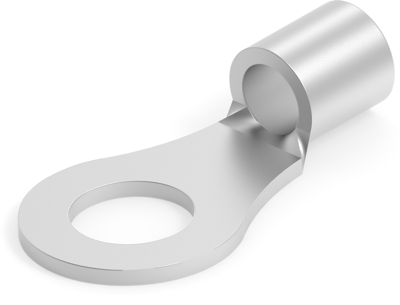

Uninsulated ring cable lug, 8.0 mm², AWG 8, 8.33 mm, M8, metal, 1-1377172-8
Order No.: 39P8544
EAN: 4099889601855
MPN:
1-1377172-8
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Leadtime: On Request **
Ring tongue terminal, 1-1377172-8, AMP
Ring tongue terminal, Wire size: 8 AWG, Wire size: 8 mm², Wire size: 13100 - 20800 CMA, Stud size: 5/16, M8
0 Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 8 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 8.0 mm² | |
| Hole diameter | 8.33 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
