1-324581-1 | AMP
Insulated forked cable lug, 2.62-6.64 mm², AWG 12 to 10, M3.5, yellow, 1-324581-1
Unit Price (€ / pc.)
1.1662 € *
Available: 0 pcs.
Leadtime: 43 Weeks **

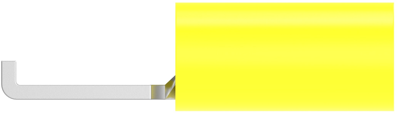

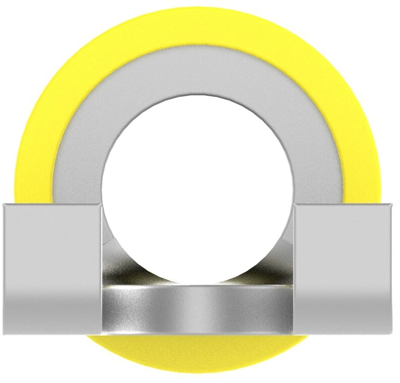

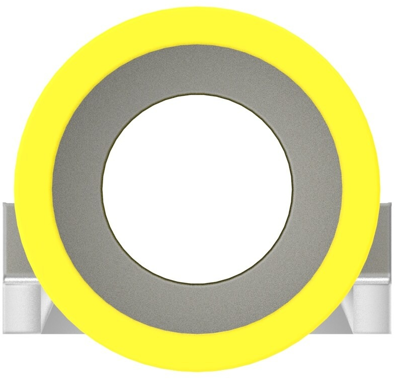

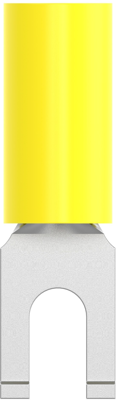

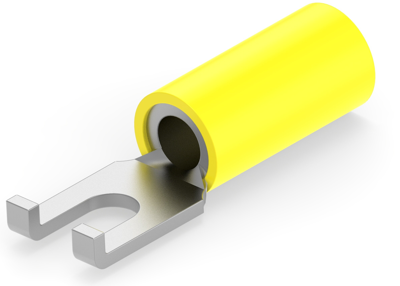

Fork cable lug, 1-324581-1, AMP
Shape Description: SPADE-025, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Stripe Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Ausführung | Gabelkabelschuh | |
| AWG-Leiterquerschnitt | AWG 12 bis 10 | |
| Farbe | gelb | |
| Gewindegröße | M3,5 | |
| Isolationsmaterial | PVC | |
| Isoliert | Yes | |
| Leiterquerschnitt | 2,62-6,64 mm² | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
