130014 | AMP

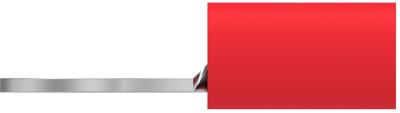

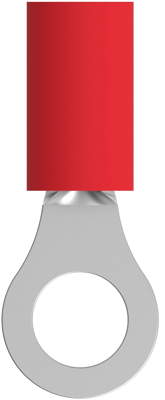

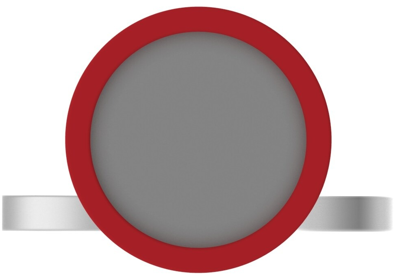

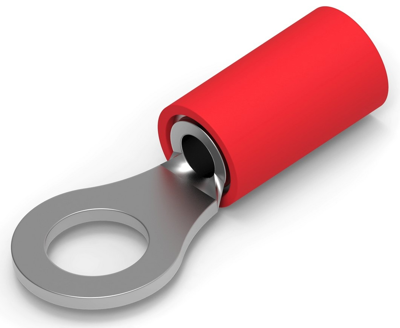

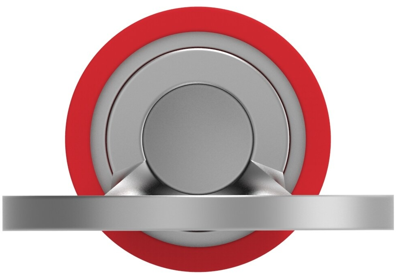

Insulated ring cable lug, 0.26-1.6 mm², AWG 22 to 16, 5.2 mm, M5, red, 130014
Unit Price (€ / pc.)
0.4998 € *
Available: 253 pcs.
Available in 5 Days: 17,833 pcs.
Leadtime: 43 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4046 €
50 pcs.
0.3213 €
100 pcs.
0.2428 €
500 pcs.
0.1940 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 130014, AMP
Regular Wire, Closed Barrel, Straight, 600 V, M5, 509 – 3260 CMA
Technical Data
- Version: Ring cable lug
- AWG cross-section AWG 22 to 16
- Colour: red
- Material: Copper, tin-plated
- Cable cross-section 0.26 to 1.6 mm²
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 22 bis 16 | |
| Colour | rot | |
| Thread size | M5 | |
| Material Insulation | PVC | |
| Isolated | Yes | |
| Cable cross-section | 0,26-1,6 mm² | |
| Hole diameter | 5.2 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 90 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
