130058 | AMP

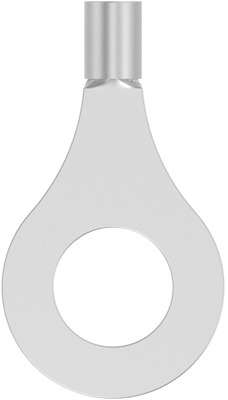

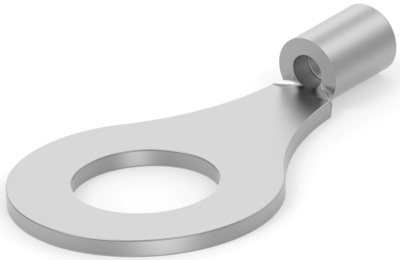

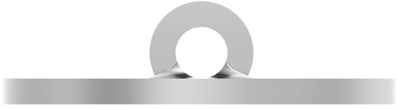

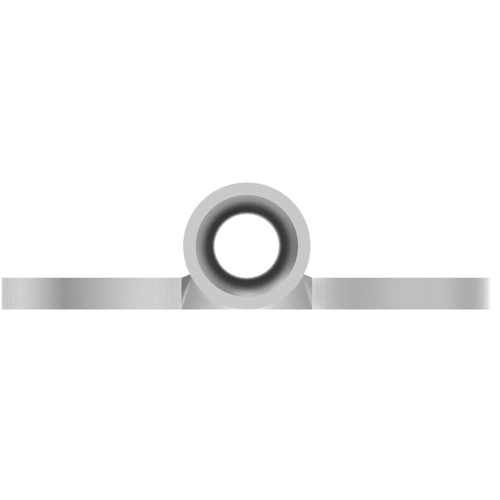

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 6.3 mm, M6, metal, 130058
Order No.: 39P8628
EAN: 4099889602593
MPN:
130058
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Available in 5 Days: 4,600 pcs.
Leadtime: 35 Weeks **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9520 €
50 pcs.
0.8568 €
100 pcs.
0.7735 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 130058, AMP
Shape Description: RING-048, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 6.3 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 22 bis 16 | |
| Farbe | metall | |
| Gewindegröße | M6 | |
| Isoliert | No | |
| Leiterquerschnitt | 0,3-1,42 mm² | |
| Lochdurchmesser | 6.3 mm | |
| Material | Zinn | |
| max. Temperatur | 170 °C |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
