130094 | AMP

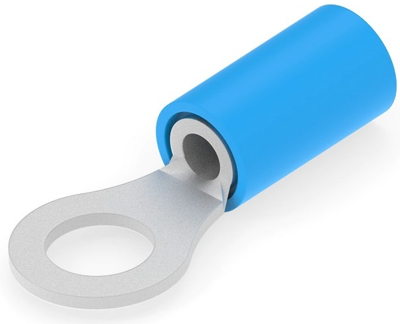

Insulated ring cable lug, 1.0-2.6 mm², AWG 16 to 14, 5.26 mm, M5, blue, 130094
Unit Price (€ / pc.)
0.5236 € *
Available: 527 pcs.
Leadtime: On Request **
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
10 pcs.
0.4760 €
50 pcs.
0.4403 €
100 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 130094, AMP
Regular Wire, Closed Barrel, Straight, 300 V, M5, 2050 – 5180 CMA
Technical Data
- Version: Ring cable lug
- AWG cross-section AWG 16 to 14
- Colour: blue
- Material: Copper, tin-plated
- Cable cross-section 1.0 to 2.6 mm²
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | blue | |
| Thread size | M5 | |
| Material Insulation | nylon | |
| Isolated | Yes | |
| Cable cross-section | 1.0-2.6 mm² | |
| Hole diameter | 5.26 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 150 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
