130106 | AMP

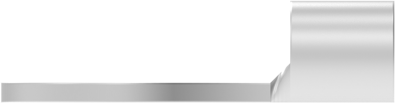

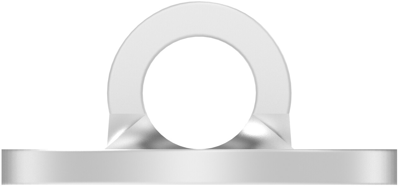

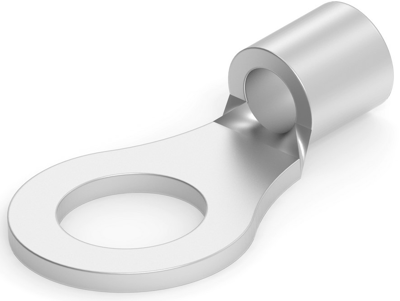

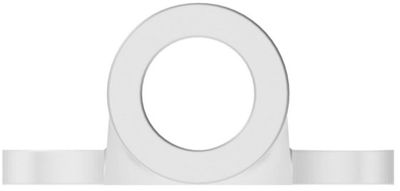

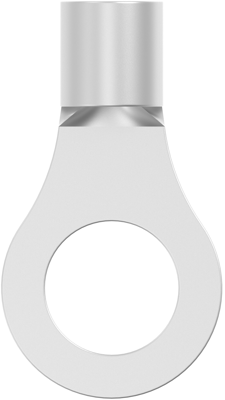

Uninsulated ring cable lug, 1.0-2.5 mm², AWG 17 to 13, 5.2 mm, M3, metal, 130106
Order No.: 39P8627
EAN: 4099889602586
MPN:
130106
Unit Price (€ / pc.)
0.3689 € *
Available: 837 pcs.
Available in 5 Days: 11,957 pcs.
Leadtime: 35 Weeks **
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3689 €
10 pcs.
0.3213 €
50 pcs.
0.2832 €
100 pcs.
0.2487 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 130106, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 17 – 13 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5.2 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 17 bis 13 | |
| Farbe | metall | |
| Gewindegröße | M3 | |
| Isoliert | No | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Lochdurchmesser | 5.2 mm | |
| Material | Zinn | |
| max. Temperatur | 170 °C |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
