130128 | AMP

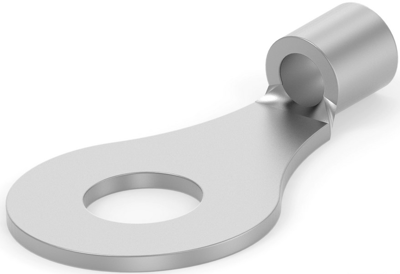

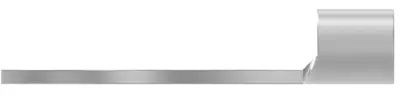

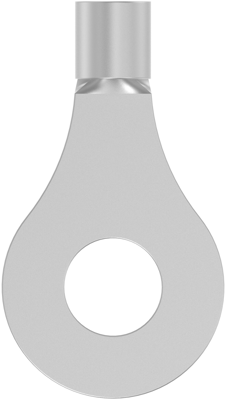

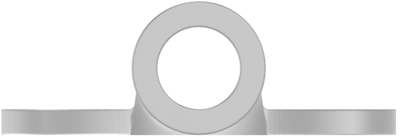

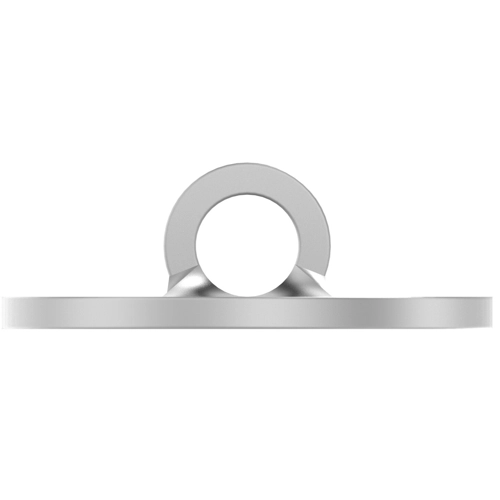

Uninsulated ring cable lug, 0.8-2.0 mm², AWG 16 to 14, 5.21 mm, M5, metal, 130128
Order No.: 39P8583
EAN: 4099889602203
MPN:
130128
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Available in 5 Days: 7,450 pcs.
Leadtime: 35 Weeks **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
152 pcs.
0.6545 €
2500 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 130128, AMP
Shape Description: RING-048, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: .8 – 2 mm², Wire Size: 1579 – 3947 CMA, Stud Diameter: 5.21 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | metal | |
| Thread size | M5 | |
| Isolated | No | |
| Cable cross-section | 0.8-2.0 mm² | |
| Hole diameter | 5.21 mm | |
| Material | tin | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
