130171 | AMP

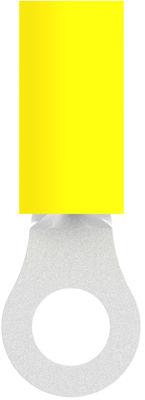

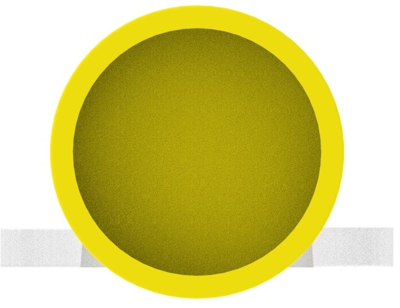

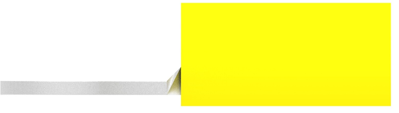

Insulated ring cable lug, 2.6-6.6 mm², AWG 12 to 10, 5.25 mm, M5, yellow, 130171
Unit Price (€ / pc.)
0.4284 € *
Available: 0 pcs.
Available in 5 Days: 15,788 pcs.
Leadtime: 36 Weeks **
Cable lug, 130171, AMP
Regular Wire, Closed Barrel, Straight, 300 V, M5, 5180 – 13100 CMA
Technical Data
- Version: Ring cable lug
- AWG cross-section AWG 12 to 10
- Colour: yellow
- Material: Copper, tin-plated
- Cable cross-section 2.6 to 6.6 mm²
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Thread size | M5 | |
| Material Insulation | nylon | |
| Isolated | Yes | |
| Cable cross-section | 2.6-6.6 mm² | |
| Hole diameter | 5.25 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
