130539 | AMP
Uninsulated forked cable lug, 1.0-2.5 mm², AWG 17 to 13, M6, metal, 130539
Order No.: 39P8615
EAN: 4099889602487
MPN:
130539
Unit Price (€ / pc.)
0.1357 € *
Available: 0 pcs.
Leadtime: On Request **

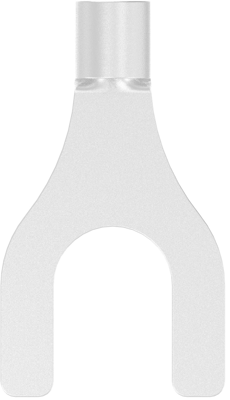

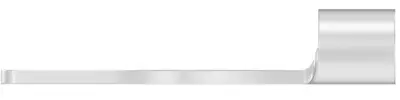

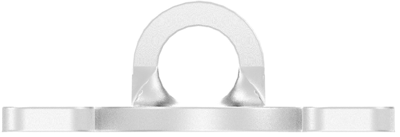

Fork cable lug, 130539, AMP
Shape Description: SPADE-047, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 17 – 13 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 6.3 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 17 to 13 | |
| Colour | metal | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 1.0-2.5 mm² | |
| Material | copper | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
