130550 | AMP

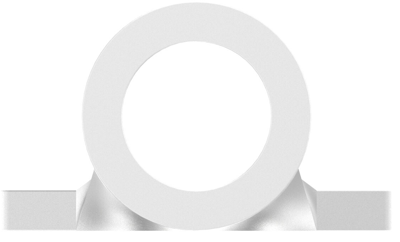

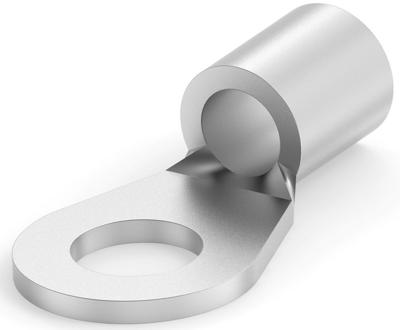

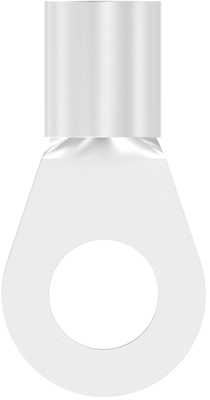

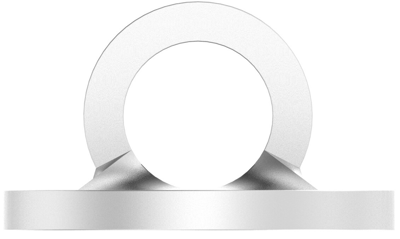

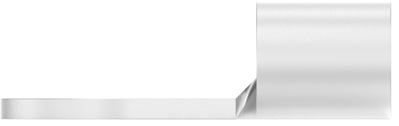

Uninsulated ring cable lug, 8.0 mm², AWG 8, 6.1 mm, M6, metal, 130550
Order No.: 39P8578
EAN: 4099889602159
MPN:
130550
Unit Price (€ / pc.)
1.2852 € *
Available: 0 pcs.
Available in 5 Days: 7,193 pcs.
Leadtime: 28 Weeks **
Ring cable lug, 130550, AMP
Shape Description: RING-080, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 8 mm², Stud Diameter: 6.1 mm, Tongue Thickness: 0.79 mm, Ring & Spade Overall Length: 23.82 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 8 | |
| Colour | metall | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 8,0 mm² | |
| Hole diameter | 6.1 mm | |
| Material | Zinn | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
