130663 | AMP

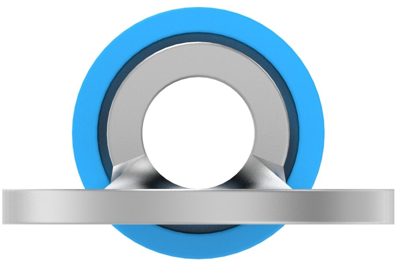

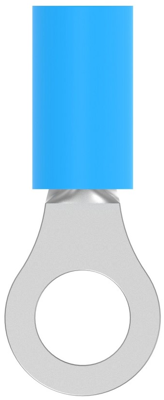

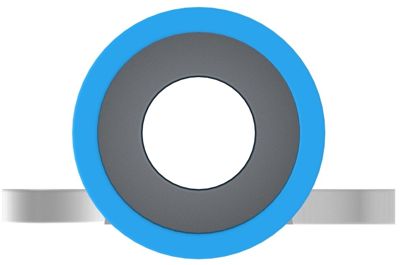

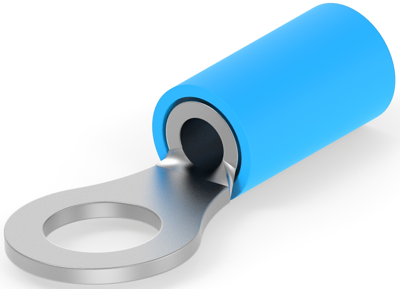

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 5.2 mm, M5, blue, 130663
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Available in 5 Days: 1,950 pcs.
Leadtime: 43 Weeks **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
1.1424 €
50 pcs.
1.0353 €
100 pcs.
0.9282 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 130663, AMP
Shape Description: RING-041, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Blue, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5.2 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 16 bis 14 | |
| Colour | blau | |
| Thread size | M5 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 1,04-2,62 mm² | |
| Hole diameter | 5.2 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
