131644-1 | AMP

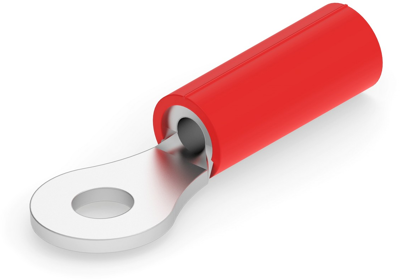

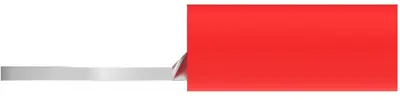

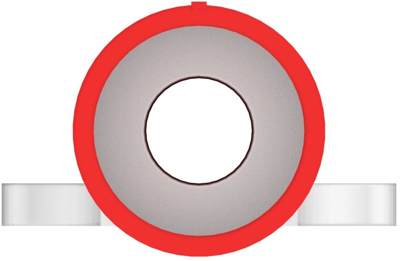

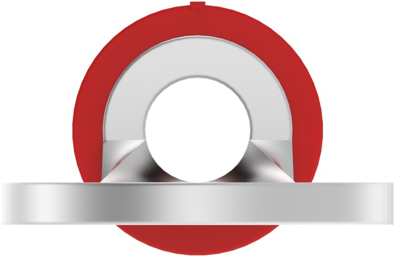

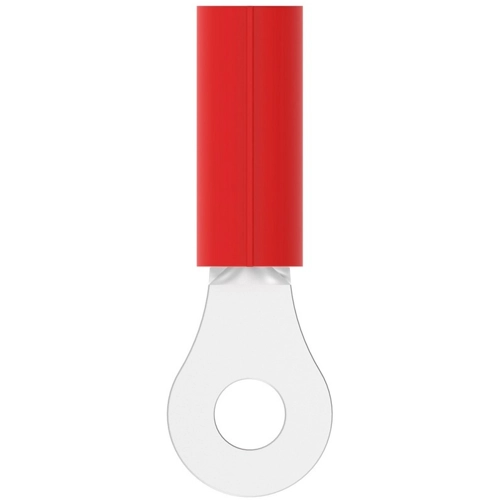

Insulated ring cable lug, 0.3-0.9 mm², AWG 22 to 18, 3.02 mm, M2.5, red, 131644-1
Order No.: 39P3526
EAN: 4099889593778
MPN:
131644-1
Unit Price (€ / pc.)
1.2614 € *
Available: 0 pcs.
Available in 5 Days: 800 pcs.
Leadtime: 43 Weeks **
Cable lug, 131644-1, AMP
Shape Description: RING-041, Ring & Spade Stud Size: M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .81 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 18 AWG, Wire Size: .3 – .9 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 18 | |
| Colour | red | |
| Thread size | M2.5 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.3-0.9 mm² | |
| Hole diameter | 3.02 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
