1377172-9 | AMP

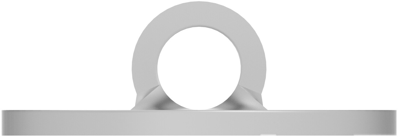

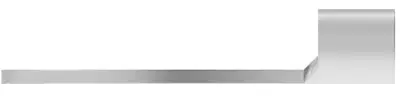

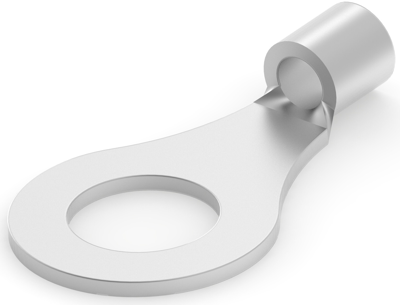

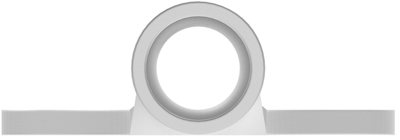

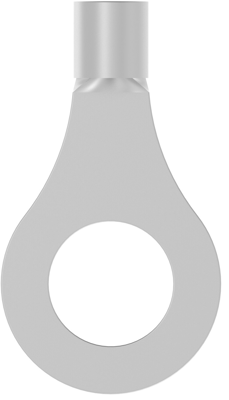

Uninsulated ring cable lug, 1.25-2.0 mm², AWG 22 to 16, 6.35 mm, M6, red, 1377172-9
Order No.: 39P8547
EAN: 4099889601886
MPN:
1377172-9
Unit Price (€ / pc.)
0.8330 € *
Available: 0 pcs.
Available in 5 Days: 875 pcs.
Leadtime: 39 Weeks **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
200 pcs.
0.8330 €
500 pcs.
0.7735 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 1377172-9, AMP
Shape Description: RING-048, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Small Pack
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | red | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 6.35 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
