140635 | AMP
Uninsulated ring cable lug, 0.5-1.5 mm², AWG 20 to 16, 4.3 mm, M4, 140635
Order No.: 35P2448
EAN: 4099889590166
MPN:
140635
Unit Price (€ / pc.)
0.0809 € *
Available: 0 pcs.
Leadtime: On Request **

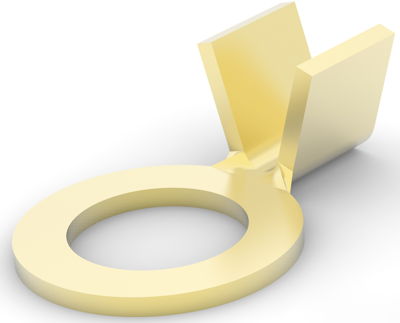

Ring cable lug, 140635, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.25 g, Ring & Spade Plating Material: Unplated, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: Without, Wire Size: 20 – 16 AWG, Wire Size: 0.5 – 1.5 mm², Wire Size: 1022 – 2583 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: 0.76 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 10000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 20 to 16 | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 0.5-1.5 mm² | |
| Hole diameter | 4.3 mm | |
| Material | brass | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
