151758 | AMP

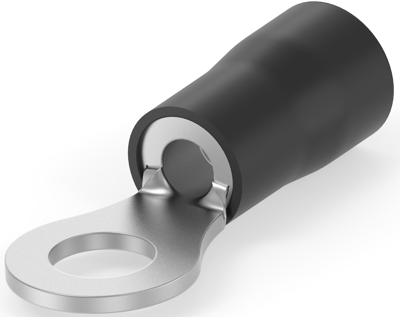

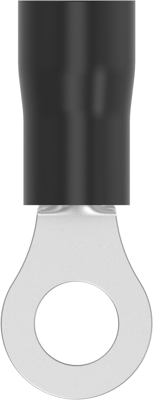

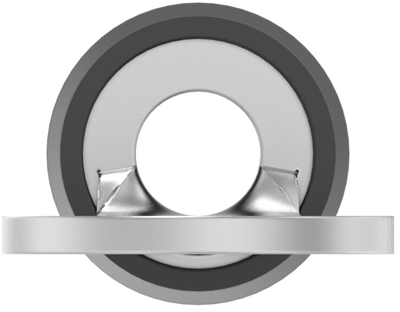

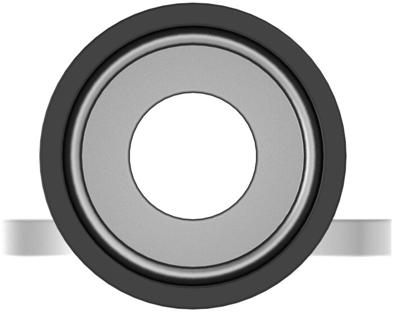

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 4.34 mm, M4, black, 151758
Order No.: 39P3342
EAN: 4099889592498
MPN:
151758
Unit Price (€ / pc.)
0.357 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 151758, AMP
Shape Description: RING-042, Ring & Spade Stud Size: M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Black, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | black | |
| Thread size | M4 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 4.34 mm | |
| Material | tin | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
