152879 | AMP

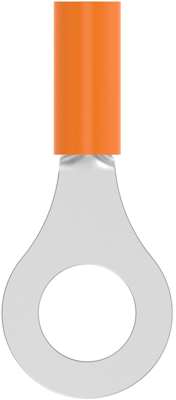

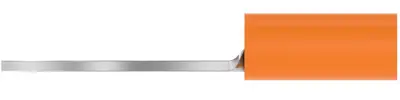

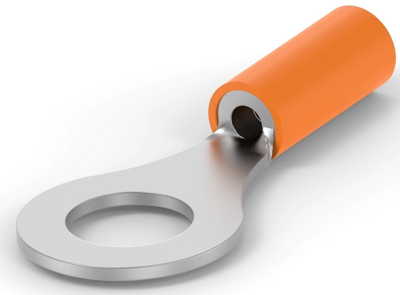

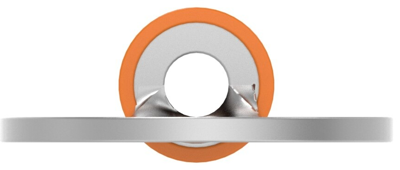

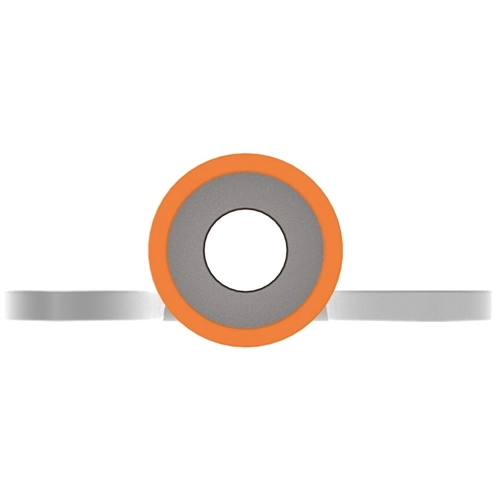

Insulated ring cable lug, 0.8-1.65 mm², AWG 18 to 16, 6.7 mm, M6, orange, 152879
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Available in 5 Days: 3,447 pcs.
Leadtime: 43 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
150 pcs.
0.7973 €
600 pcs.
0.7497 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 152879, AMP
Shape Description: RING-041, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Orange, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 18 – 16 AWG, Wire Size: .8 – 1.65 mm², Wire Size: 1600 – 3260 CMA, Stud Diameter: 6.7 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 18 to 16 | |
| Colour | orange | |
| Thread size | M6 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.8-1.65 mm² | |
| Hole diameter | 6.7 mm | |
| Material | tin | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
