152882 | AMP

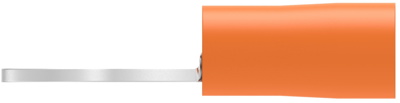

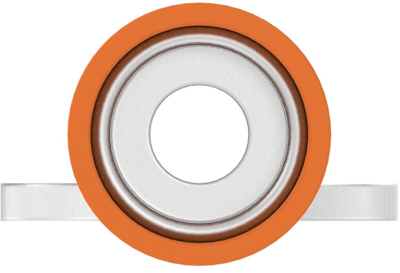

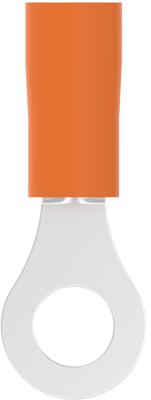

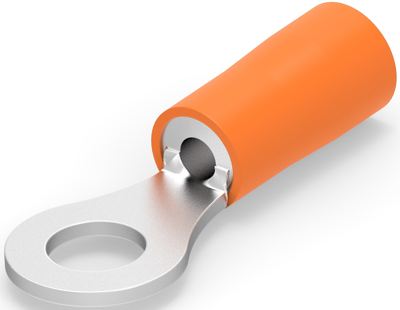

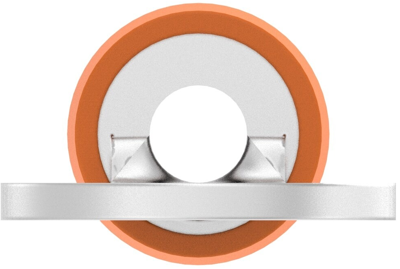

Insulated ring cable lug, 0.8-1.65 mm², AWG 18 to 16, 4.3 mm, M4, orange, 152882
Unit Price (€ / pc.)
2.3800 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1658 €
50 pcs.
1.9516 €
100 pcs.
1.7493 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 152882, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Orange, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 18 – 16 AWG, Wire Size: 0.8 – 1.65 mm², Wire Size: 1600 – 3260 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 18 to 16 | |
| Colour | orange | |
| Thread size | M4 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.8-1.65 mm² | |
| Hole diameter | 4.3 mm | |
| Material | tin | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
