152884 | AMP

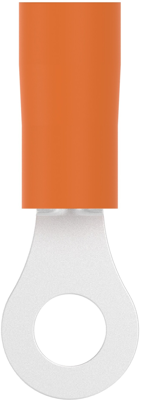

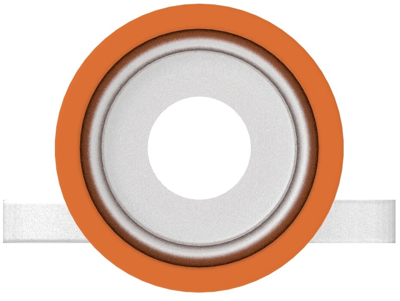

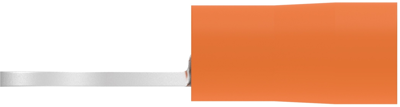

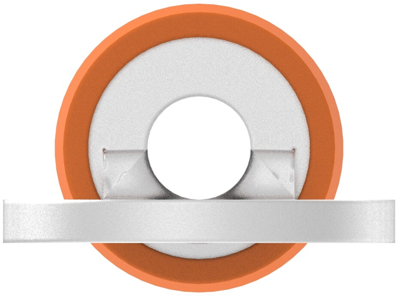

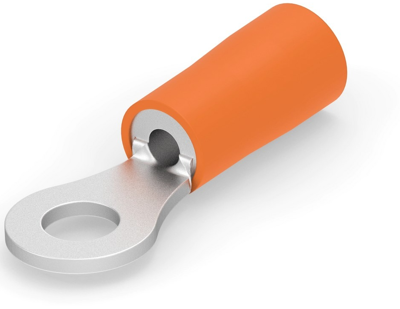

Insulated ring cable lug, 0.8-1.65 mm², AWG 18 to 16, 3.68 mm, M3.5, orange, 152884
Unit Price (€ / pc.)
3.7961 € *
Available: 0 pcs.
Available in 5 Days: 3,795 pcs.
Leadtime: 43 Weeks **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7961 €
10 pcs.
3.4867 €
50 pcs.
3.1416 €
100 pcs.
2.8322 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 152884, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Orange, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 18 – 16 AWG, Wire Size: 0.8 – 1.65 mm², Wire Size: 1600 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 18 bis 16 | |
| Farbe | orange | |
| Gewindegröße | M3,5 | |
| Isolationsmaterial | PA | |
| Isoliert | Yes | |
| Leiterquerschnitt | 0,8-1,65 mm² | |
| Lochdurchmesser | 3.68 mm | |
| Material | Zinn | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369040 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
