160102-2 | AMP

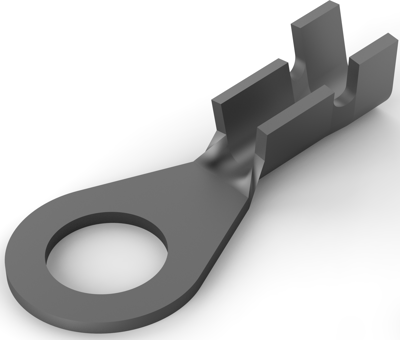

Uninsulated ring cable lug, 0.5-1.5 mm², AWG 20 to 15, 5.3 mm, metal, 160102-2
Order No.: 35P2481
EAN: 4099889590371
MPN:
160102-2
Unit Price (€ / pc.)
0.1773 € *
Available: 0 pcs.
Available in 5 Days: 12,000 pcs.
Leadtime: 31 Weeks **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.1773 €
12000 pcs.
0.1690 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 160102-2, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: .656 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 20 – 15 AWG, Wire Size: .5 – 1.5 mm², Wire Size: 1021 – 3256 CMA, Stud Diameter: 5.3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 6000, Ring & Spade Packaging Method: Strip/Reel, Comment: Splice Free
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 20 to 15 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 0.5-1.5 mm² | |
| Hole diameter | 5.3 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
