160127 | AMP

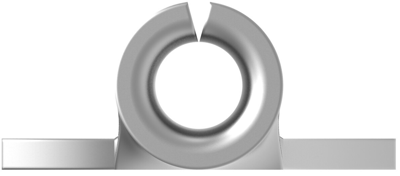

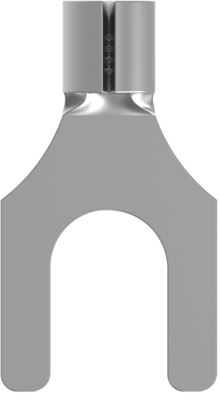

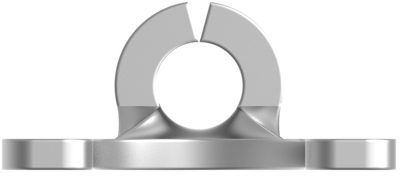

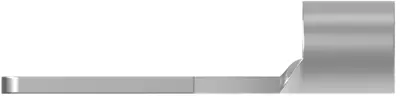

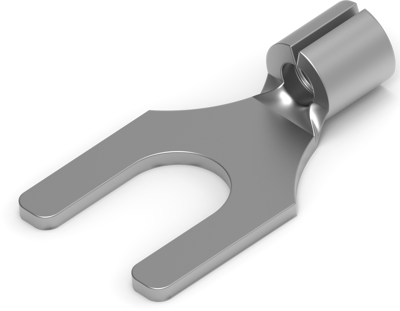

Uninsulated forked cable lug, 1.0-2.5 mm², AWG 17 to 13, M3, metal, 160127
Order No.: 39P8637
EAN: 4099889602654
MPN:
160127
Unit Price (€ / pc.)
0.1428 € *
Available: 0 pcs.
Leadtime: On Request **
Fork cable lug, 160127, AMP
Shape Description: SPADE-047, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Rectangular Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 17 – 13 AWG, Wire Size: 1 – 2.5 mm², Stud Diameter: 5.2 mm, Tongue Thickness: .79 mm, Ring & Spade Overall Length: 17.6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 17 to 13 | |
| Colour | metal | |
| Thread size | M3 | |
| Isolated | No | |
| Cable cross-section | 1.0-2.5 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
