160163-2 | AMP

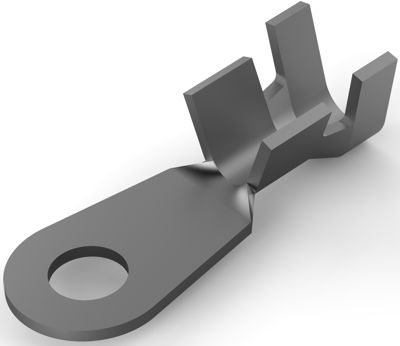

Uninsulated ring cable lug, 3.1-5.3 mm², AWG 12 to 10, 4.3 mm, M4, metal, 160163-2
Order No.: 35P2484
EAN: 4099889590401
MPN:
160163-2
Unit Price (€ / pc.)
0.1773 € *
Available: 0 pcs.
Available in 5 Days: 92,400 pcs.
Leadtime: 29 Weeks **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
2200 pcs.
0.1773 €
4400 pcs.
0.1737 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 160163-2, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.741 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 12 – 10 AWG, Wire Size: 3.1 – 5.3 mm², Wire Size: 6529 – 10382 CMA, Stud Diameter: 4.3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2200, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 3.1-5.3 mm² | |
| Hole diameter | 4.3 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
