160292 | AMP

Insulated ring cable lug, 2.6-6.6 mm², AWG 12 to 10, 5.2 mm, M5, yellow, 160292

Order No.: 39P4111
EAN: 4099889598360
MPN:
160292
Series: PLASTI-GRIP

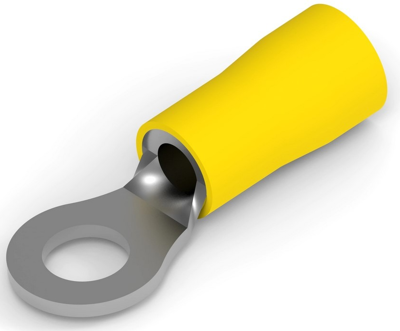

160292 AMP Cable Lugs Image 1

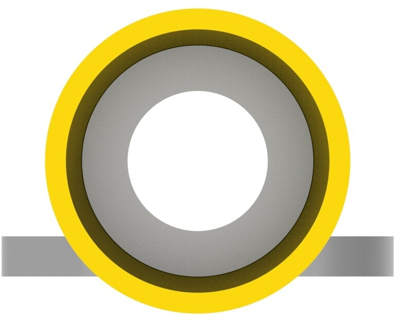

160292 AMP Cable Lugs Image 2

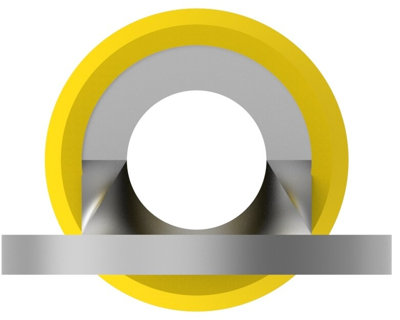

160292 AMP Cable Lugs Image 3

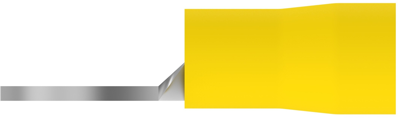

160292 AMP Cable Lugs Image 4

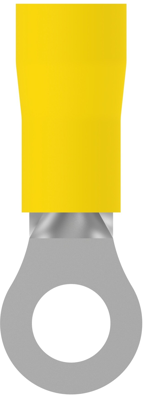

160292 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.7259 € *
Available: 59 pcs.
Available in 5 Days: 652 pcs.
Leadtime: 36 Weeks **
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
10 pcs.
0.6783 €
50 pcs.
0.6069 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable lug, 160292, AMP

Regular Wire, Closed Barrel, Straight, 600 V, M5, 5180 – 13100 CMA

Technical Data

  • Version: Ring cable lug
  • AWG cross-section AWG 12 to 10
  • Colour: yellow
  • Material: Copper, tin-plated
  • Cable cross-section 2.6 to 6.6 mm²
Technical specifications
Ausführung Ringkabelschuh
AWG-Leiterquerschnitt AWG 12 bis 10
Farbe gelb
Gewindegröße M5
Isolationsmaterial PVC
Isoliert Yes
Leiterquerschnitt 2,6-6,6 mm²
Lochdurchmesser 5.2 mm
Material Kupfer, verzinnt
max. Temperatur 90 °C
Logistics
Ursprungsland CZ
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
