160337-2 | AMP

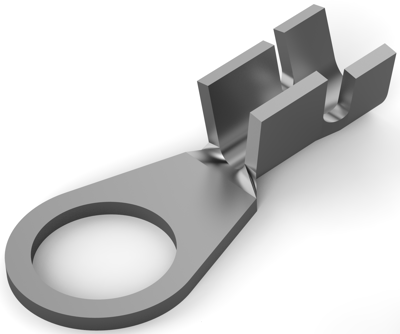

Uninsulated ring cable lug, 0.8-2.5 mm², AWG 18 to 14, 6.4 mm, M6, metal, 160337-2
Order No.: 35P2470
EAN: 4099889590302
MPN:
160337-2
Unit Price (€ / pc.)
0.1571 € *
Available: 0 pcs.
Available in 5 Days: 30,000 pcs.
Leadtime: 29 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.1571 €
12000 pcs.
0.1488 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 160337-2, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.983 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 18 – 14 AWG, Wire Size: 0.8 – 2.5 mm², Wire Size: 1618 – 4107 CMA, Stud Diameter: 6.4 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 6000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 18 to 14 | |
| Colour | metal | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 0.8-2.5 mm² | |
| Hole diameter | 6.4 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
