160467-2 | AMP

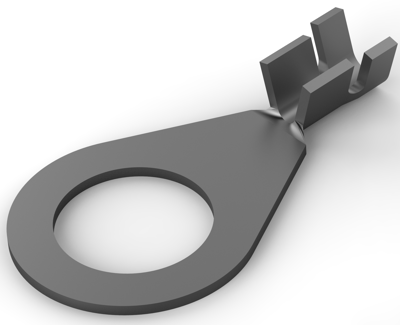

Uninsulated ring cable lug, 1.0-2.5 mm², AWG 17 to 13.5, 10.5 mm, M10, metal, 160467-2
Order No.: 35P2491
EAN: 4099889590432
MPN:
160467-2
Unit Price (€ / pc.)
0.2559 € *
Available: 0 pcs.
Available in 5 Days: 6,000 pcs.
Leadtime: 4 Weeks **
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.2559 €
4000 pcs.
0.2499 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 160467-2, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: M10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 4.148 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 17 – 13 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 2048 – 5178 CMA, Stud Diameter: 10.5 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 17 to 13.5 | |
| Colour | metal | |
| Thread size | M10 | |
| Isolated | No | |
| Cable cross-section | 1.0-2.5 mm² | |
| Hole diameter | 10.5 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
