165017 | AMP

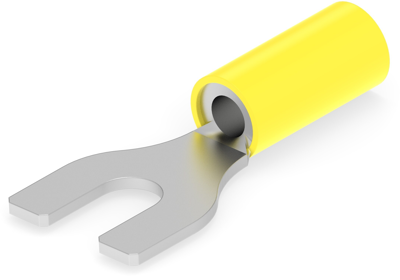

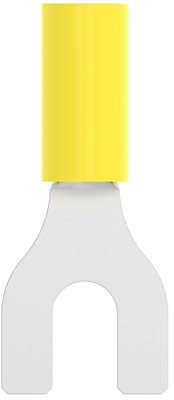

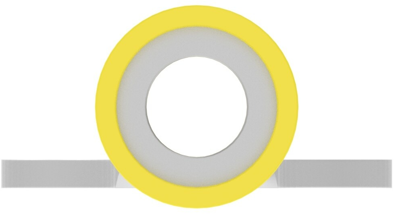

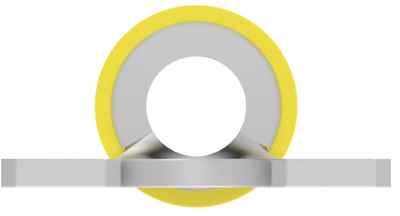

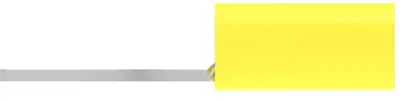

Insulated forked cable lug, 2.62-6.64 mm², AWG 12 to 10, M5, yellow, 165017
Order No.: 39P4113
EAN: 4099889598384
MPN:
165017
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 5 Days: 43,530 pcs.
Leadtime: 43 Weeks **
Fork cable lug, 165017, AMP
Shape Description: SPADE-021, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 5.2 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 90 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Thread size | M5 | |
| Material Insulation | PVC | |
| Isolated | Yes | |
| Cable cross-section | 2.62-6.64 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 90 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
