165045 | AMP

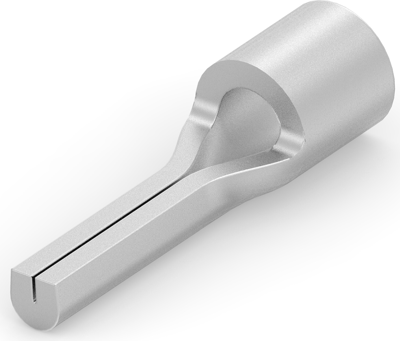

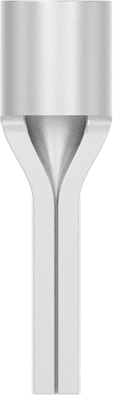

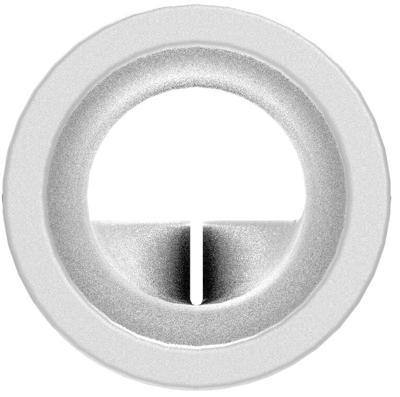

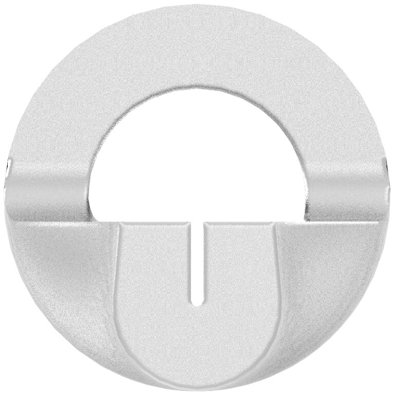

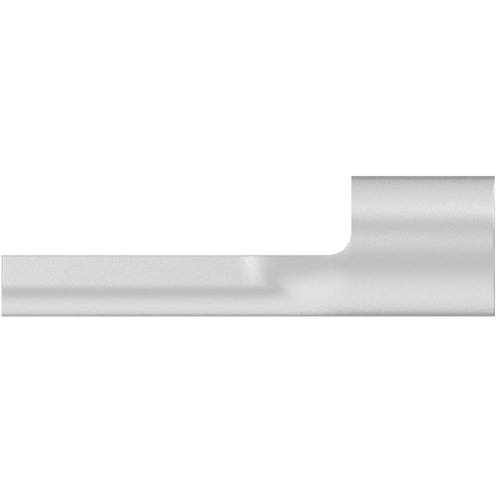

Name: Uninsulated crimp wire pins, 1.0-2.5 mm², AWG 16 to 14, 1.78 mm, 165045
Brand: AMP
SKU: 39P8569
Price: 0.28 EUR
Availability: OutOfStock

Uninsulated crimp wire pins, 1.0-2.5 mm², AWG 16 to 14, 1.78 mm, 165045

Order No.: 39P8569

EAN: 4099889602074

MPN:

165045

Image may differ

Key Specification:

Version crimp wire pins

Cable cross-section 1.0-2.5 mm²

AWG cross-section AWG 16 to 14

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2785 € *

Available: 0 pcs.

Available in 5 Days: 55,866 pcs.

Leadtime: 35 Weeks **

Add to Cart

Total Price:

0.28 € *

Price list

Quantity

Price per unit*

350 pcs.

0.2785 €

1600 pcs.

0.2618 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Crimp Wire Pins, Tabs and Ferrules, 165045, AMP

Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Sealable: No, Insulated: No, Support Style: Non - Insulation Support, Double Wire: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Copper,Tin, Terminal Length: 6.7 mm, Terminal & Splice Type: Pin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Wire Pin, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 1.78 mm, Pin Type: Formed, Bullet Terminal: Without, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 2050 – 5180 CMA, Barrel Inside Diameter: 2.15 mm, Crimp Wire Pin, Tab & Ferrule Material Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Packaging Quantity: 1000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Box

Technical specifications

	Version	crimp wire pins
	AWG cross-section	AWG 16 to 14
	Isolated	No
	Cable cross-section	1.0-2.5 mm²
	Material	copper, tin-plated
	max. operating temperature	170 °C
	Pin diameter	1.78 mm
