165295 | AMP

Uninsulated ring cable lug, 1.5-2.5 mm², AWG 16 to 14, 3.2 mm, M3, metal, 165295

Order No.: 39P8206
EAN: 4099889599879
MPN:
165295

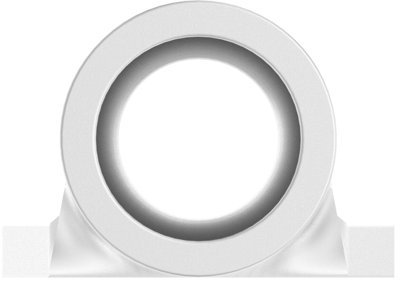

165295 AMP Cable Lugs Image 1

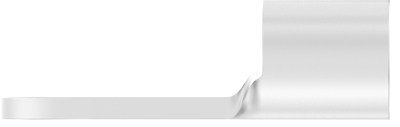

165295 AMP Cable Lugs Image 2

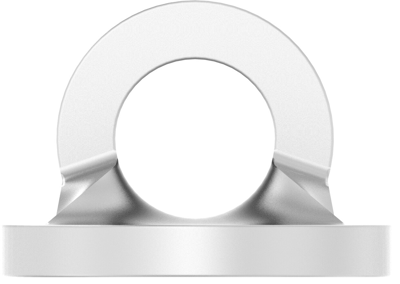

165295 AMP Cable Lugs Image 3

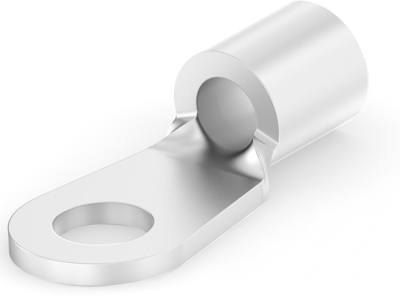

165295 AMP Cable Lugs Image 4

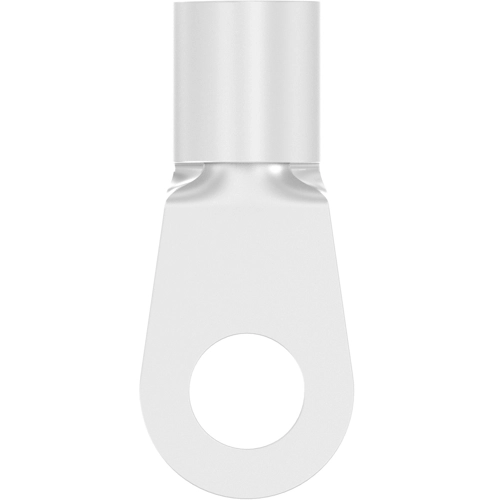

165295 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.6069 € *
Available: 0 pcs.
Available in 5 Days: 6,335 pcs.
Leadtime: 35 Weeks **
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.5236 €
50 pcs.
0.4641 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable lug, 165295, AMP

Shape Description: RING-101, Ring & Spade Stud Size: M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.5 – 2.5 mm², Wire Size: 4108.69 – 6528.45 CMA, Stud Diameter: 3.2 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Strip

Technical specifications
Ausführung Ringkabelschuh
AWG-Leiterquerschnitt AWG 16 bis 14
Farbe metall
Gewindegröße M3
Isoliert No
Leiterquerschnitt 1,5-2,5 mm²
Lochdurchmesser 3.2 mm
Material Kupfer, verzinnt
max. Temperatur 170 °C
Logistics
Ursprungsland CN
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
