170725-2 | AMP

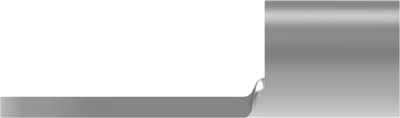

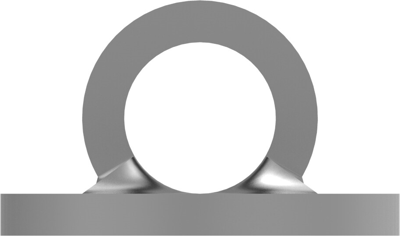

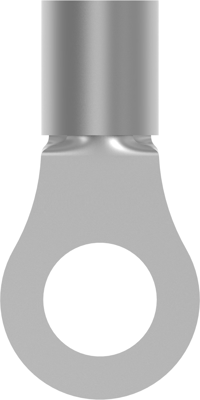

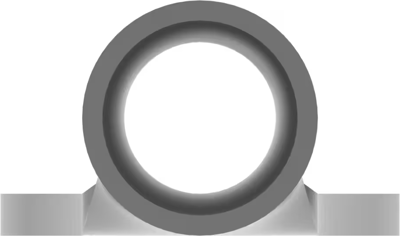

Uninsulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 5.4 mm, M5, metal, 170725-2
Order No.: 39P8609
EAN: 4099889602449
MPN:
170725-2
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 170725-2, AMP
Shape Description: RING-048, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 5.4 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | metal | |
| Thread size | M5 | |
| Isolated | No | |
| Cable cross-section | 3.0-6.0 mm² | |
| Hole diameter | 5.4 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
